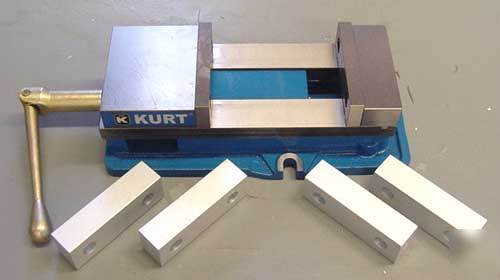

1 Pc. Kurt brand new 6" x 8.8" Jaw Opening (D688) "D" Series Anglelock Vise with Ironclad - Lifetime Warranty and 2 Pairs of KURT Machinable Aluminum Jaw Plates. Everything in this kit is made by KURT. The accessories are not cheap knock offs.
The original Kurt Anglock D-Series vises are designed for precision part clamping on basic machine tools such as knee-type mills, grinders and machining centers. D-Series vises are ideal for use in running production parts where datums, flatness and parallelism is important. You can precision bore, tap, drill, grind and finish with high accuracy on most parts made of die cast aluminum, steel, and iron in your Kurt Anglock vises. No other brand can give you the time proven accuracy of the Kurt Anglock vises. All Kurt vises have a friction reducing, needle bearing, thrust collar. The needle bearing increases jaw clamping pressure.
D688* Large 8.8 inch jaw opening.
* Outside rail edges of the body are machined.
* Vise nut does not extend beyond the end of the vise body.
* D688 has the same footprint as the D675 vise. Distance from keyway to stationary same as D675.
* Groove Lock jaw (D60-315) and workstop (WSRL46) standard.
* Patented “O†ring pull down feature standard.
* Approximately a 20% increase in clamping pressure over D675 vise.
* Distinctive patented design of the “Kurt Lookâ€.
* Bed height matched to size 2.875" (73.025 mm) ±0.0005".
* Repeatability within 0.001".
* Sealed needle thrust bearing used at hex end of screw to reduce clamping friction.
Bed height matched to size 2.875" (73.025mm) ±0.0005". Patented “O†ring pull down feature is standard. Parts from the previous body style are interchangeable with this new one.
Features of All D-Series Vises Include:* AngLock design assures the movable jaw does not lift.
* 80,000-PSI ductile iron body.
* Matching of bed height ±0.001" available at an additional cost for the D40 and D100 vises.
* Matching of the keyway to the stationary jaw ±0.001" is available at additional cost.
* Some models available in metric version.
2 Pairs of KURT Machinable Aluminum Jaw Plates
6" Aluminum (6061-T6) soft jaw. Fits all Kurt 6" vises. Reversible top to bottom and front to back, (Counter bore both sides).
Extra thickness for carving part shapes into jaw plate.
5.969" L x 1.500" W x 1.874" H.
Everything in this kit is made by KURT. The accessories are not cheap knock offs.
*
*
*
