960012 APR9600 voice recording & playback + LM386 kit
960012 APR9600 voice recording & playback + LM386 kit
Single-Chip APR9600 Voice Recording & Playback + LM386 Amplifier Kit - 60secods
APR9600 is a low-cost high performance sound record/replay IC incorporating flash analogue storage technique. Recorded sound is retained even after power supply is removed from the module. The replayed sound exhibits high quality with a low noise level. Sampling rate for a 60 second recording period is 4.2 kHz that gives a sound record/replay bandwidth of 20Hz to 2.1 kHz. However, by changing an oscillation resistor, a sampling rate as high as 8.0 kHz can be achieved. This shortens the total length of sound recording to 32 seconds.
Total sound recording time can be varied from 32 seconds to 60 seconds by changing the value of a single resistor. The IC can operate in one of two modes: serial mode and parallel mode.
In serial access mode, sound can be recorded in 256 sections. In parallel access mode, sound can be recorded in 2, 4 or 8 sections. The IC can be controlled simply using push button keys. It is also possible to control the IC using external digital circuitry such as micro-controllers and computers.
The APR9600 has a 28 pin DIP package. Supply voltage is between 4.5V to 6.5V. During recording and replaying, current consumption is 25 mA. In idle mode, the current drops to 1 mA.

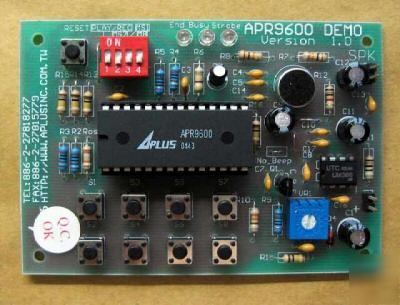

The APR9600 experimental board is an assembled PCB board consisting of an APR9600 IC, an electret microphone, support components and necessary switches to allow users to explore all functions of the APR9600 chip. The oscillation resistor is chosen so that the total recording period is 60 seconds with a sampling rate of 4.2 kHz.
http:// .tw/pro-recording.htm
http:// .tw/data/recording/data-sheet/apr9600.zip
960012 APR9600 + LM386 Amp. Kit (this item)
2. Speed Post / EMS: takes 3-5 days to your hands. Fixed US$15 for US; US$20 for UK France Germany etc. Others place, please ask me.
