Lathe Carriage Travel Gauge PLANS Precision attachment

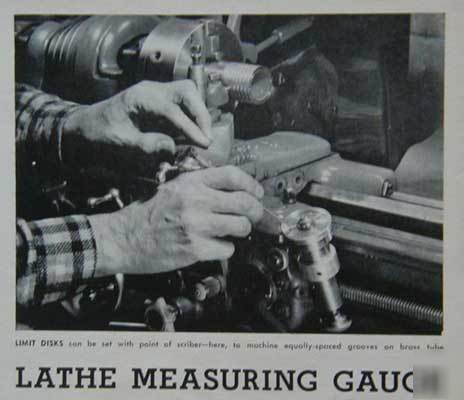

Plans to build a Lathe Measuring Gauge. This attachments can improve the metal-lathe with its ability to measure, in small fractions of an inch, the carriage travel along the ways.
* Cut accurately spaced grooves or slots on the inner or outer face of a cylinder
* Control depth of boring-tool cuts.
* Control amount of material removed in facing cuts.
* Machine grooves and recesses in the face of work to predetermined depth.
* Cut series of rings, disks, or pins to uniform length or thickness from a chucked tube or bar.
* Position the steps in work being machined to several diameters.
* Works as a conventional thread dial to indicate where to engage the split nut in making repeat cuts.
This is an original 5 page magazine article from 1963.
* Measured Drawings and Diagrams
Pages are not all shown in Photos
* $5.00 for priority mail service.
