> 160AMP tig /mma acdc w/foot pedal + 40AMP plasma cutter
160AMP tig /mma acdc w/foot pedal + 40AMP plasma cutter
160AMP tig /mma acdc w/foot pedal + 40AMP plasma cutter
Call if you have any questions (***)-967-8299
We sell direct from Riland USA, the only Trademarked, Legitimate Riland Brand Dealer in the United States.
We will NOT cover machines purchased from other sellers with our warranty, you will have to pay for repair service.
* 20-160amp ACDC Tig Welder w/foot pedal

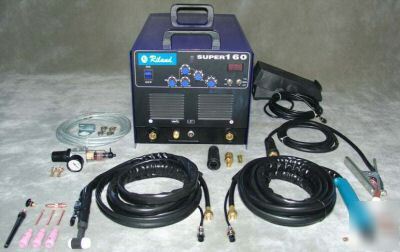

This is a very compact ALL-IN-ONE Inverter Plasma Cutter / Tig Welder / Arc Welder capable of outperforming all competition...ie: HTP, Miller, Hobart, Thermal Dynamics, Blue Point, Lincoln & Hypertherm. This machine boasts features found in our other top of the line machines such as a 160amp Tig / MMA Welder with ACDC mode with foot pedal, LCD amperage display, 40amp plasma cutter and a generous panel for fine tuning adjustments.
You would have to purchase 3 separate machines to do what this ONE machine can do! A 160Amp Tig Welder would cost you over $1000, a 40Amp Plasma Cutter would cost you at least $900 and a 150Amp Arc Welder would cost you at least $300.
You can view the manual online at /super160manual.pdf
Riland Super160 General Specs:
Built in High Speed Cooling Fans w/Thermal & Overload Protection for long life.
Includes: Regulator with Pressure Gauge and Built in water separator with stop cock drain. Also includes fiber reinforced hose for air line, hose nipples and hose clamps. All mounting hardware is included.
Plasma Cutter | Tig Welder | Arc Welder
Duty Cycle: 60% at 40amp cut / 100% at 31amp cut
Cutting Specs: (High Frequency Start)
3" Per minute @ 3/4" Steel (Severance Cut)
7" Per minute @ 1/2" Thick Steel
17" Per minute @ 3/8" Thick Steel
When I tried the Riland Brand I was blown away by the Performance and Power. It sliced through thick steel like butter, it was also easier to use and felt safer. Plus the electrodes are reversible! I have never seen that before. Sure saves a lot of money in the long run. Using this light weight plasma cutter is cheaper than Oxyacetytlene after just a few cuts. Less cleaning, less maintenance, less noxious gases, less fire hazard, simply less overall work and a better, cleaner cut.
Torch head is low profile for tight spaces. 16 foot long torch cord is protected by a heat resistant sleeve.
Why does our plasma cutter boast such thick cutting capacities? Because our machine is designed for Negative potential on the cutting torch and a much higher cutting voltage than miller, hobart, hypertherm or htp. We beat them everytime, in every competition!
Plasma Cutter | Tig Welder | Arc Welder
Duty Cycle: 60% at 160amp tig / 100% at 96amp tig
Steel, Stainless, Moly, ferrous, Aluminum, copper, brass, titanium, etc...
15-30 Tig / Cutting = 55-75psi 2.4cfm regular air.
High Frequency Start / AC or DC w/ Pulse Welding
1x #4 Shield cup, 1x #5 Shield cup, 1x #6 Shield cup, 3x collets, 1x collet body, 1x long & 1x short back cap for tight spaces.
Don't be fooled by the fact that this is a multipurpose machine. It's packed with full features like the separate machines. The Tig welds from this RilCT416 are clean and strong. This Tig welder is easier to use than any other Tig welder on the planet! Just flip a switch, set your amperage and weld...It's that simple. You Get all the full features you need. Weld aluminum with AC mode, Weld steel and alloys with DC or pulse mode. With foot pedal and finger switch. This is the best deal you will find for such a high quality, complete machine.
The torch trigger can be moved for a custom fit. Can be used in finger or thumb positions. Set includes Short back cap to make torch low profile for tight spaces. 16 foot long torch cord is protected by a heat resistant sleeve.
Plasma Cutter | Tig Welder | Arc Welder
Duty Cycle: 60% at 150amp ARC / 100% at 92amp ARC
1x twist lock connector with allen and rubber handle.
A spool gun can be connected to the ARC welding output of this machine to use it for MIG welding. Simply connect the input to the MIG Spool gun to the ARC output of the Super160, connect the trigger wires to the trigger input of the Super160 and you have a 15-150amp Mig Welding Torch. We will have a kit available very soon to allow our Riland 3035 spoolgun to adapt to this machine.
Extra consumables are available from us or from several locations including most welding supply stores. Most consumable parts on this unit are OEM and easy to match with other brands. The Tig parts are found in any welding supply store. The Plasma cutter consumables are interchangeable with the Cut-40 Riland brand and can be purchased from any Riland Dealer or from us.
Warranty is handled through RilandUSA. For Details go to Rilandusa's website.
In this book you will learn: History of Tig, How to Tig, Techniques for proper welding, Lots of illustrations and pictures, Hints, How Tig works, Component definitions, DC tig, High Frequency & AC Tig, How to Setup, Tig Modes, Welding steel, stainless, aluminum, magnesium, titanium, etc.. spot welds, polarity setup, tungsten tip preparation, gas settings, charts, guidelines and much more. Also a section on Plasma Cutting: basic history, process and techniques. Also included are pictures and mode setup. This is the perfect companion for any welding shop.
Two types of power cord plugs are common. (United Kingdom 220v or United States 220v 50Amp Style) You will need to determine which style you require based upon your outlet. Any hardware store should carry the plug you need for just a few dollars.
Oceanside, CALIFORNIA 92051-3238
This is the perfect gift for anyone working in automotive, industrial, metal fabrication or the hobbyist. This machine is the most versatile, lightweight, most power per weight ration, energy efficient, most reliable, for the price, I have seen in my career.
We are also a certified repair facility for Riland Cut40, Cut60, Tig200ACDC and RilCT416 Multipurpose machines. We have replacement circuit boards and parts available with only a 2 week lead time for repairs... although we've never had to repair one yet :)
Temporary Email: billy.kaufman@dontscrapit.com (Billy Kaufman)
