Acterna wavetek ms-1400 signal level stealth meter


Acterna wavetek ms-1400 signal level stealth meter

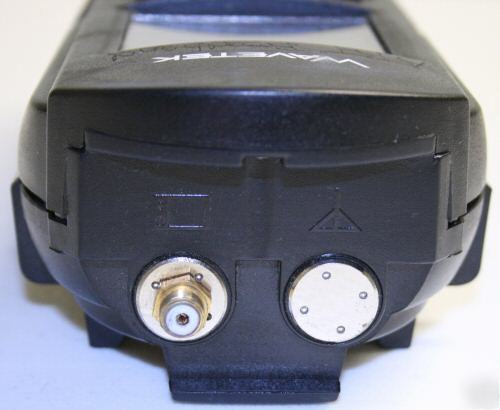

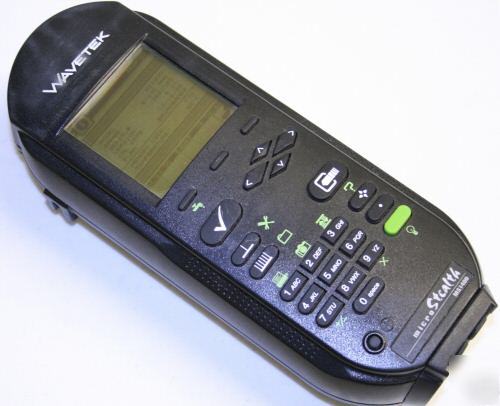

Wavetek MicroStealth MS1400 Signal Level Meter

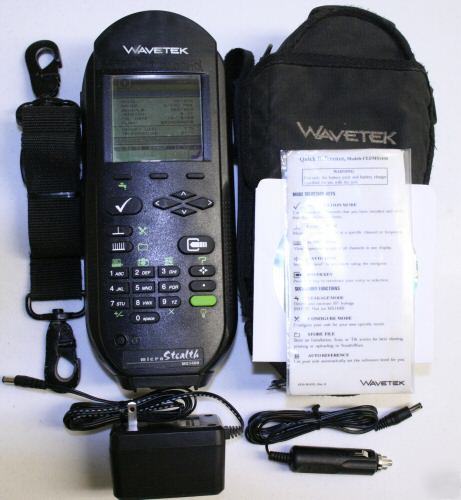

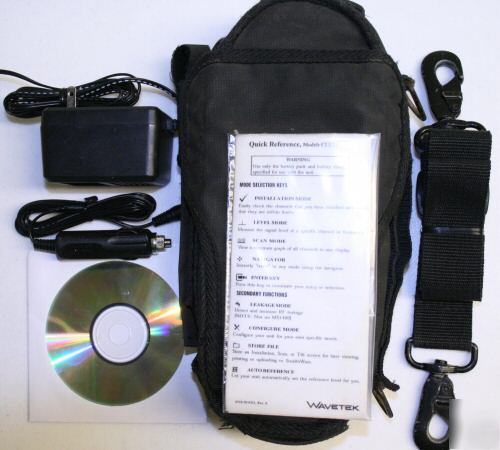

Included Accessories Listed at the Bottom.
Be sure to add us to your Favorites list!.
Warranty: 30 Day Exchange Warranty
System bandwidth expansion and digital service deployment have placed more demands on installers and service technicians. Today's installers require a signal level meter that combines advanced measurement capability with the ruggedness needed for everyday field use.
The MicroStealth family of SLMs offers comprehensive, reliable measurement performance for every skill level of the cable networks technician and engineer. From field maintenance to installation, to troubleshooting today's more advanced networks, there is a MicroStealth designed to meet your specific testing needs. All models quickly locate, analyze, and repair network trouble, but each have additional features unique to specific testing and maintenance requirements.
* Icon Driven User Interface
6 Channel Scan* Installation Check
* Configure by Channel or Frequency
Channel Video/Audio Level & Delta * FCC & CENELEC Limit Check
* All Channel Scan/Full Scan
* Ingress Scan in Reverse Band
* Ingress Scan in Forward Band
* Stores Measured Results/Screens
â„¢ - Digital Measurement * Digital & Analog Limits
Standard Frequency Range: 5-890 MHz
* Accuracy: +-10 kHz@25 C (=-20 kHz over temp.)
* Tuning Resolution: 25 kHz 25 kHz 25 kHz 25 kHz
* Flatness: +-0.75 dB Flatness
* Linearity: +-0.75 dB Flatness
* Scan Rate: Approx 6 carrier/second
General Dimensions: 4.25”W x 10”H x 2.5”D
* Operating Temp Range: 10 to 50 C (14 to 122F)
* Water Resistant: Exceeds MIL-STD-810D
* Battery Life: 3 hrs/replacement battery
* Charge Time: 16 hrs unit off, 30 hrs slow charge (unit on)
