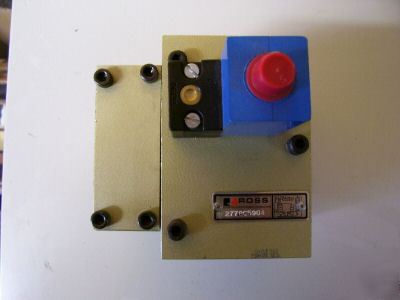

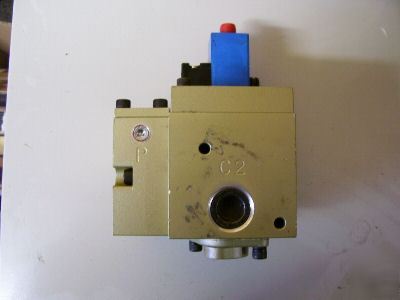

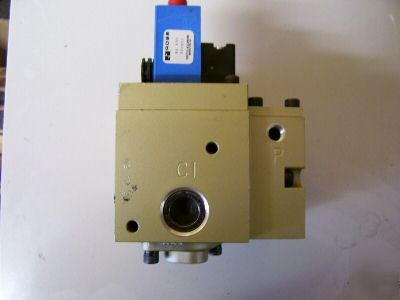

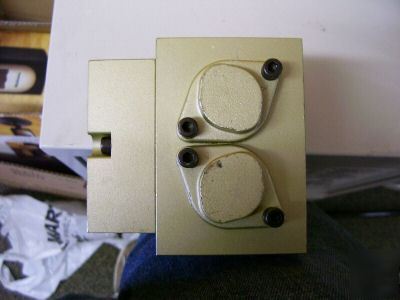

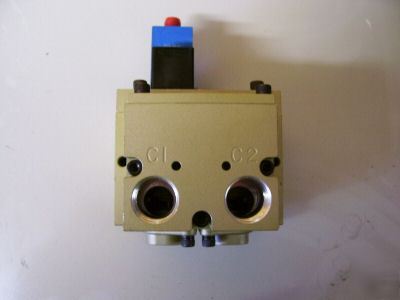

Ross pneumatic valve model #2778C5904
Ross pneumatic valve model #2778C5904
Model Details Product Model #:2778c5904 Dual PO check, solenoid, remote pressure relief, 4-pin Micro connector (24 vdc) Features: POPPETS ARE SELF-COMPENSATING FOR WEAR; PROMOTE LONG LIFE. PROVEN, RUGGED POPPET DESIGN. SERVICEABLE IN-LINE. Isometric Model Characteristics Construction: Poppet Mounting Type: Line Actuation 1: Single Solenoid Pilot Actuation 2: Air assisted spring return Pipe Size (In): 3/4 Pipe Size (Out): 3/4 Pipe Size (Exh): N/A Thread Form: NPT; G Thread Male/Female: Female Function 1: Dual pilot-operated check Function 2: Remote trapped pressure relief Average Cv (In to Out): 8.5 Dimension A: 4.4 (in) ; 112 (mm) Dimension B: 6.7 (in) ; 170 (mm) Dimension C: 4.4 (in) ; 112 (mm) Weight: 6.1 (lb) ; 2.8 (kg) Specifications Standard Voltage: 24 Volts d.c. Power Consumption: 4.5 watts Wiring Type: DROP CORD (4 PIN - MICRO CONNECTOR). 24 VDC. Manual Override: Flush (metal, non-locking). Ambient Temperature Range: 40 TO 120 F (4 TO 50 C) Media Temperature Range: 40 TO 175 F (4 TO 80 C) Flow Media: 5 Micron Filtered Air. Inlet Pressure Range: 30 TO 150 PSIG (2 TO 10 BAR).
