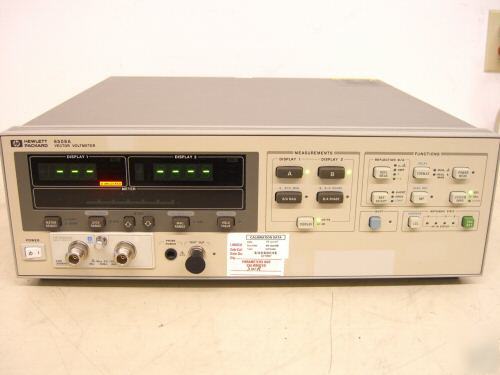

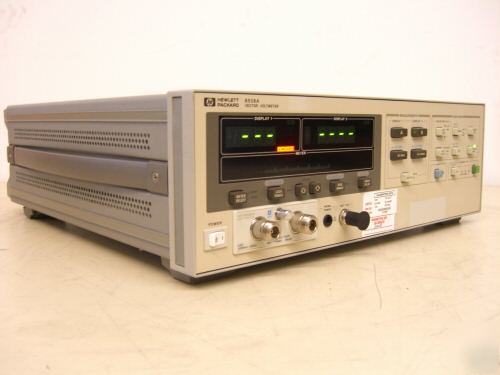

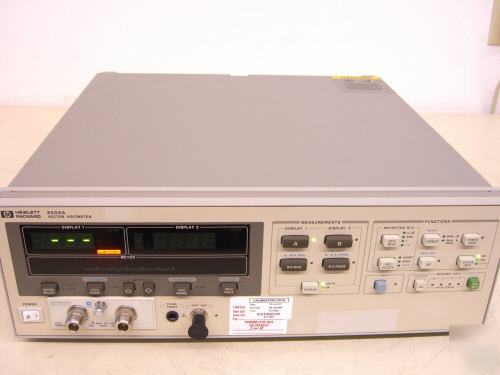

HP (Agilent) 8508A Vector Voltmeter w/ 85082A Input Module

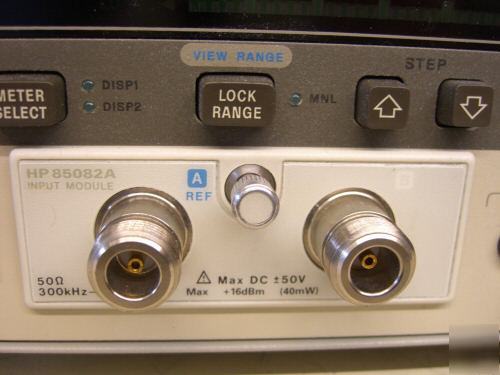

* Description: The HP (Agilent) 8508A Vector Voltmeter is a fully automatic tuned receiver that makes RF voltage and phase measurements easy. Its narrow band measuring technique gives a dynamic range of over 90 dB and a sensitivity of 10 µV to trace even the smallest signal. The HP 8508A Vector Voltmeter also measures the phase difference between its two input channels with at least 0.1 degree resolution over a full +180 to -180 degree range, so they can be used for another complete set of measurements, such as electrical length, phase distortion, or impedance. The 8508A is normally supplied with the HP 85081B input module. This HP 8508A includes the optional HP 85082A Input Module (and not an 85081B). The HP (Agilent) 85082A is a 50-ohm input module with a frequency range of 300 kHz to 2 GHz. Maximum input is 16 dBm, +/- 50 Vdc. Complete specifications for the HP 85082A Input Module can be found here: http://cp.literature.agilent.com/litweb/pdf/85082-90007.pdf

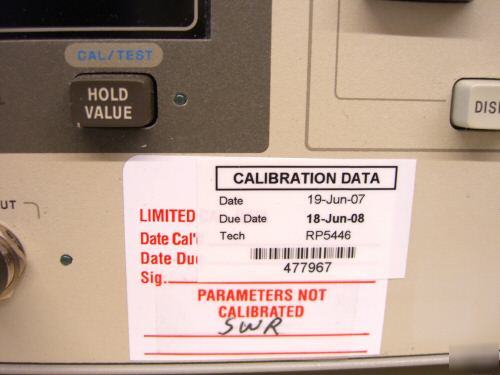

* Working Condition: Tested. Calibration due 06/18/08. Calibration was a limited cal - SWR Parameters were not tested.
* Other Comments / Notes: None
* Warranty: Rest assured that your purchase includes a 3-day DOA Guarantee. If the item is DOA, you will need to notify us within 3-days of receipt. Item(s) must be returned in the same condition as received within 7 days of receipt. (See below for further details).
We strongly recommend that you properly pack and insure the package against loss or damage. It is ultimately your responsibility that your returned product arrives at our location within the allotted return time frame in the same condition it was sent.
