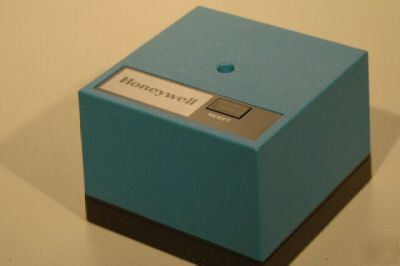

Honeywell burner control R7795A1001 flame safegaurd


Honeywell burner control R7795A1001 flame safegaurd

FLAME SAFEGUARD PRIMARY CONTROL
WITH A ST795A1031 30 SEC. CARD INSTALLED
The R7795 Flame Safeguard Primary Control provides Flameout protection plus automatic control of Commercial and Industrial gas and oil burners.
Provide solid state, electronic flame safeguard protection for commercial and industrial single or dual fuel burners.
Include flame signal amplifiers that are color-coded: purple for ultraviolet and green for rectification. • Require a plug-in prepurge timer of 1.5, 7, 10, 30, 60, or 90 seconds. • Mount on a Q795A Wiring subbase with two captive screws. • Include line voltage airflow switch to prove airflow from the start of prepurge through the run period. • Prevent start-up with lockout if flame or a flame simulating failure exists.
• Description Full Function Primary Safety Control, Intermittent Pilot, Ultraviolet • Application Provides Flameout Protection plus Automatic control of Commercial and Industrial Gas and Oil Burners • Flame Failure Response Time (sec) 3 sec nominal • Purging Time Determined by Plug -in Purge Timer • Safety Switch Timing Electronic - 10 seconds, Mechanical - 15 seconds • Electrical Connections Terminals in Q795 Wiring Subbase • Voltage 120 Vac • Frequency 50 Hz • Frequency 60 Hz • Alarm Relay Switching 120Vac Output for Alarm • Required Components ST795 Prepurge Timer and Q795 Wiring Subbase • Temperature Range (F) -40 F to +135 F • Temperature Range (C) -40 C to +57 C • Dimensions (in.) 5 in. high x 5 in wide x 5 1/4 in. deep. • Dimensions (mm) 127 mm high x 127 mm wide x 133.5 mm deep • Approvals, Underwriters Laboratories Inc Component Recognized: File No. MP268, Guide No. MCCZ • Approvals, Canadian Standards Association Certified: File No. LR1620-681 • Approvals, Factory Mutual Approved: Report No. J.I.OK389.AF • Approvals, Industrial Risk Insurers Acceptable •
