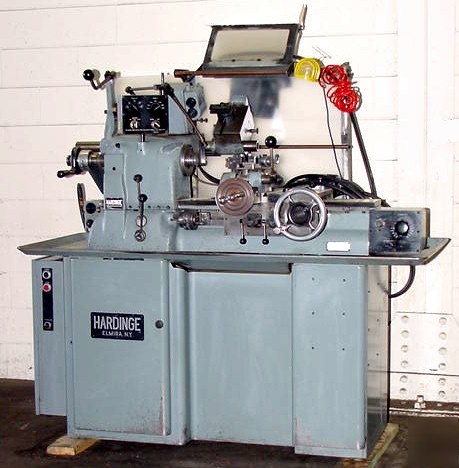

11" PRECISION ENGINE LATHE, Hardinge HC-AT w/
11" PRECISION ENGINE LATHE, Hardinge HC-AT w/
HARDINGE PRECISION CHUCKING LATHE
MODEL HC, S/N HC 3828-N, NEW 1975
MAX FIXTURE DIAMETER ................. 9"
MAX DISTANCE FROM FACE OF TURRET
TO SPINDLE ..................... 14"
WITH ROUND 5C COLLETS .......... 1-1/16"
WITH 5C STEP CHUCKS ............ 1-1/16" TO 6"
WITH JAW CHUCKS ................ 6"
SPINDLE TAPER ........................ HARDINGE TAPERED NOSE
TRAVEL OF CROSS SLIDE ................ 4-1/2"
CROSS SLIDE POWER FEED RANGE ......... 11/32 TO 6-1/4 IPM
CARRIAGE POWER FEED RANGE ............ 1/4 TO 10 IPM
VARIABLE SPINDLE SPEEDS, (3 SELECTOR)
LOW SPEEDS ..................... 125 - 1,100 RPM
HIGH SPEEDS .................... 1100 - 3,000 RPM
APPROXIMATE WEIGHT ................... 1,750 LBS.
- HARDENED AND GROUND DOVETAIL BED
- LEVER-TYPE COLLET CLOSER FOR TYPE 5C COLLETS
- INDEPENDENT ELECTRICAL VARIABLE POWER FEED TO CARRIAGE
- EIGHT STATION CROSS FEEDING TURRET WITH ADJUSTABLE STATIONS
- EIGHT POSITION TURRET-TYPE CARRIAGE STOP
- SELF-CONTAINED COOLANT SYSTEM
- AUTOMATIC THREADING ATTACHMENT
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
CONDITION: **** EXCELLENT ****
Machine Location: HARRISON, NJ
