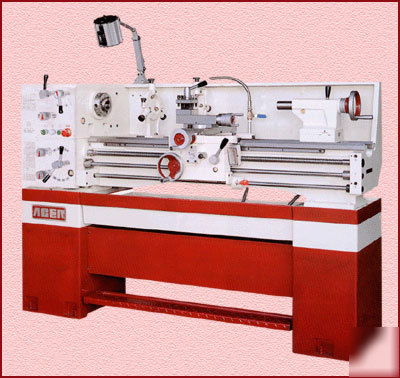

13" ENGINE LATHE, Acer 1340G Dynamic Series 3
13" ENGINE LATHE, Acer 1340G Dynamic Series 3
"NEW" ACER High Speed Precision Engine Lathe
Swing Over Cross Slide: 7-5/8"
Spindle Speeds: 80-2000 RPM (9 steps)
Max Size Cutting Tool: 3/4" x 3/4"
Pitch of Leadscrew: 24 Diameter, 4 TPI
Metric Pitch Threads: 0.4 - 7mm/pitch (30 kinds)
Range of Longitudinal Feeds: 0.0016" - 0.03"/rev.
Range of Cross Feeds: 0.0008"-0.015"/rev.
Floor Dimensions: 67-3/4" x 28-3/8"
Packing Dimensions: 75" x 30" x 58"
HEADSTOCK: All gears are made with chromium molydenum
steel and are hardened & ground to its accuracy. A forced
lubrication system lubricates all running gears and bearing within
GEAR BOX: Unique two lever universal gear box offers a wide
range of cutting capacity. All ranges can be reached by moving
SPINDLE: 1-1/2" bored spindle is made from medium carbon steel
and is induction hardened & ground to its final accuracy. It also
has a two-point support with both bearings being taper roller.
APRON: Automatic feeding and threading in apron are fully
interlocked to prevent simultaneous engagement of both functions.
TAILSTOCK: Keyed 1-7/16" diametered quill is hardened to
Rockwell C 55° & ground to its inspection accuracy.
24 volts safety control circuit.
Weigh in at 1,320 / 1,380 lbs.
7-1/2" wide bed way with FC-30 casting iron.
Optional Accessories (call for pricing):
Aloris or Dorial Tool Posts and Holders
5C Lever Operated Collet Closer
5C Handwheel Type Collet Closer
Newall or Sony 2 Axis Digital Readouts
Machine Location: HARRISON, NJ
Click Here For More Acer Machines
Click Here For More Toolroom Machines - NEW LATHES(s)
Call Kori at (***) 873-6224 ext 7555
Call Alex at (***) 873-6224 ext 7613
Finance This Equipment For Your Business - Click Here
Finance Equipment For Your Business - Click Here
* Machinery Values is one of the world's largest machinery dealers, in business since 1971.
* New machines are covered under their own warrantees. Details of each warranty can be found within the quotation for all new machines.
* Most items in our store are located in our warehouse in Harrison, New Jersey - about 9 miles from New York City. You may inspect any item prior to purchase, under power in most cases, simply by calling and arranging an inspection. There is no charge for this.
