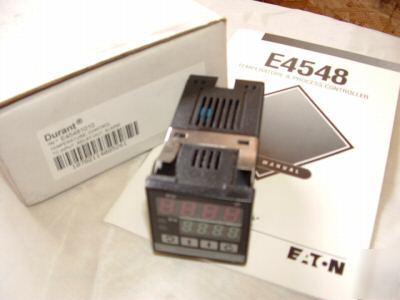

Eaton durant temperature controller E45481010


Eaton durant temperature controller E45481010

Thermocouple Input, Relay and Alarm Output
The E4548 and E4524 series have a 0.4" 4-digit LED display. Feature fuzzy logic PID control with Autotuning and On/Off control. °F or °C indication. Heat/cool outputs with fail-safe, sensor break protection, ramp with dwell or soak timer for soft start, and programming security. Feature 1 control output as relay, SSR, or 4-20mA, and 1 alarm output with 14 operating modes. Universal power: E4548 series 90-240VAC; E4524 series 90-264VAC. E4548 series is 1/16 DIN (48 x 48mm). Size: 1.77H x 1.77W x 3.70"D. Accepts thermocouple input, types J, K, T, E, B, R, S and N (switch selectable). E4524 series is 1/32 DIN (24 x 48mm). Size: 0.94H x 1.89W x 3.78"D. Front panel meets NEMA enclosure type 4 and IEC IP65 enclosure classification.
