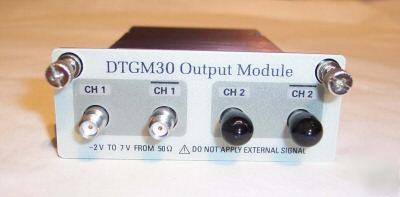

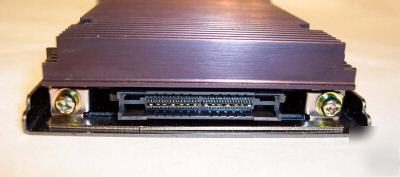

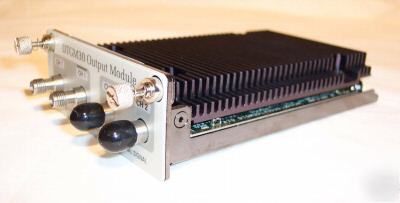

Tektronix DTGM30 data timing generator module DTG5274
Tektronix DTGM30 data timing generator module DTG5274
Our office is located at: Contact hours by phone: Trust! Excellent!
3146 Millbrook Dr. Mon - Fri 4:00pm - 10:00pm PST Quality!
San Jose Ca 95148 Sat - Sun 9:00am - 9:00pm PST
Unit Included: Does not come with any manuals
Condition: Excellent physical condition. Unit is working condition. 7 days full warranty. Please see Term and Condition for more detail.
Descriptions and features: 2 channel Data Timing Generator output module for use in DTG5078 and DTG5274
* 2 complementary channels
* <95 ps (VOL = 0.0, VOH = 0.1) (typical)
* <110 ps (VOL = 0.0, VOH = 1.0) (typical)
* 0.03 to 1.25 Vp-p/5 mV (into 50 Ω)*2
* 0.06 to 2.5 Vp-p/5 mV (into 1 MΩ)*2
* –2.0 V to 2.47 V (into 50 Ω)
* –2.0 V to 7.0 V (into 1 MΩ)
* (±3% of the set value) ±50 mV into 50 Ω to GND
* High and low level limits can be set
* <10% (typical) at High = 1.0 V, Low = 0 V
* LVDS, CMOS, (P)ECL, LVPECL, CML
Australia + New Zealand + Taiwan fixed rate: $65.00 US Dollars.
Canada + Alaska + Hawaii fixed rate: $32.00 US Dollars.
United Kingdom + Sweden fixed rate: $60.00 US Dollars.
Belgium + France + Germany + Spain + Italy + Switzerland + Netherlands fixed rate: $55.00 US Dollars.
7 Days Full Warranty: The items are 7 days warranty unless specified in description.
DOA: Guarantee against Dead On Arrival.
