> Ilx lightwave ldc 3916 16 high power calibrated modules
Ilx lightwave ldc 3916 16 high power calibrated modules
Ilx lightwave ldc 3916 16 high power calibrated modules

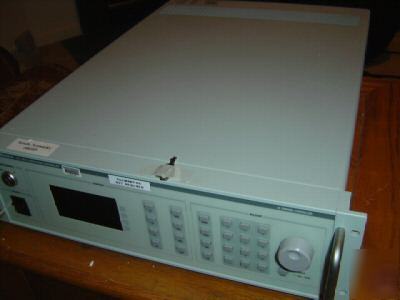

A 16-CHANNEL HIGH POWER LASER DIODE CONTROLLER WITH (16) #3916376 1500MA PLUG IN COMBO MODULES for both Laser and TE control, CHANNEL SEQUENCE & POWER SUPPLY MODULES. Each TEC/TDD Module Retails for more than $1800.
Also included is One ILX Laser Mount Fixture LDM 4980.
Click on following Pictures for larger view.
* 16 independent, isolated channels for multiple laser and TE control
* Wide variety of laser controller modules with up to 3A per channel
* Dual channel laser current or TE control modules for control of up to 32 laser diodes
* Current sources operate in constant current or constant power operating modes with direct modulation up to 1.2MHz
* Temperature controllers operate in constant temperature or constant resistance mode with expanded gain setting from 1 to 127
* GPIB/IEEE-488 or RS-232 remote control interface
The LDC-16-Channel Laser Diode Controller is designed for simultaneous control of both laser current and temperature in a single mainframe for R&D or production test of optical amplifiers. Its high stability, low-noise current, and temperature controllers also makes it ideal for low-channel count burn-in systems. Laser current source, temperature, and combination controller modules are interchangeable between the 8 and 16 channel mainframes.
The LDC-3916 provides up to 16 channels of laser diode current source and temperature control. It is a space-saving, 3U-high, rack-mountable instrument.
A wide variety of laser control modules are available including LAS/TEC controller, dual channel laser current source, and dual channel temperature control modules. Controller modules source up to 500mA, 1A, or 1.5A of laser current with an integrated 9W TEC controller. Dual laser current source modules, with two isolated outputs, source 500mA or 1A, while dual channel temperature control modules provide two independent 9W outputs. For controlling up to 16 higher power pump lasers, a single output 3A current source is available.
Instrument control in automated test environments is possible through the GPIB/IEEE-488 interface or RS-232 serial interface.
For specifications on the LDC-3916, please refer to the LDC-3916 product brochure.
* Excellent Working condition
Temporary Email: Olliereynolds@dontscrapit.com (Ollie Reynolds)
