Caser radial arm drill drilling machine (5' x 14")
Caser radial arm drill drilling machine (5' x 14")

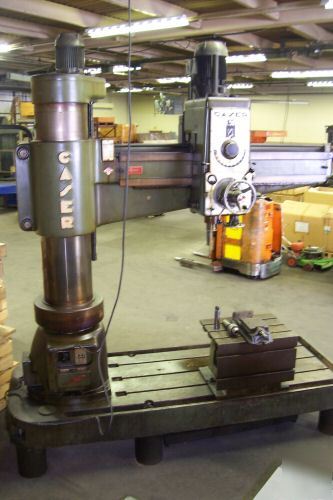

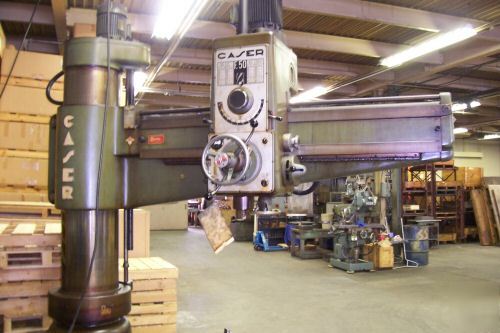

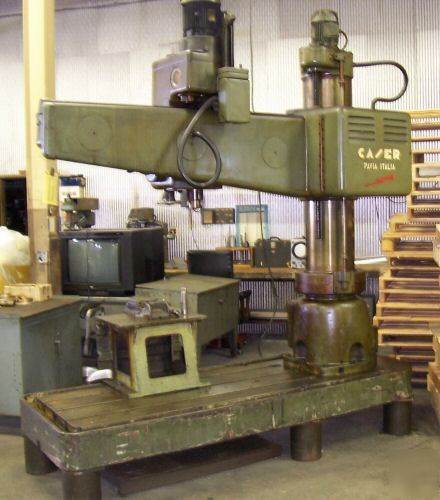

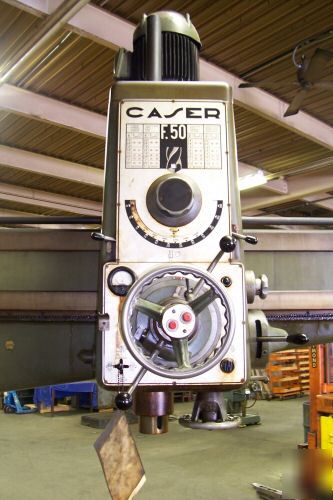

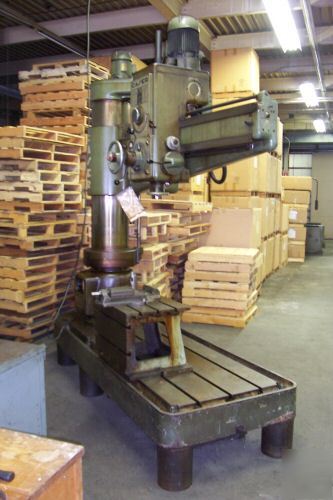

CASER RADIAL ARM DRILL WITH 5’ ARM X 14†COLUMN
MODEL NO. F50-1600 ; S/N:50-9068
* MIN. DISTANCE FROM CENTER OF SPINDLE TO OUTSIDE DIAMETER OF COLUMN: 15â€
* MAX. DISTANCE FROM CENTER OF SPINDLE TO OUTSIDE DIAMETER OF COLUMN: 63â€
* MIN. DISTANCE FROM SPINDLE NOSE TO BASE: 26-1/2â€
* MAX. DISTANCE FROM SPINDLE NOSE TO BASE: 54â€
* ARM LENGTH FROM OUTSIDE DIAMETER OF COLUMN: 74â€
* WORKING SURFACE OF BASE: 30†X 69â€
* THREE TEE SLOTS: 7/8†WIDE / 8-7/8†SPACING
* MOTOR FOR MOVING ARM ON COLUMN: 2.5 H.P.
* EQUIPPED WITH T-SLOTTED BOX TABLE AND BUILT IN COOLANT SYSTEM
* APPROX. WEIGHT: 8,500 LBS.
This machine has been in our Berlin, CT shop from the time it was purchased in 1969. For the first 15 years, the machine was used regularly. However, for the past 25 years, this machine has not been used in production.
Additional photos are available upon request. Please provide your e-mail address when requesting additional photos or further information. Thank you.
Temporary Email: gay-white@dontscrapit.com (Gay White)
