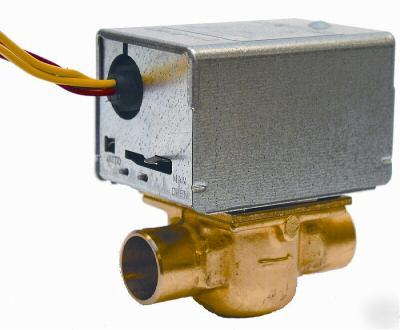

Honeywell V8043E1004 24V 1/2 in. sweat zone valve


Honeywell V8043E1004 24V 1/2 in. sweat zone valve

24V 1/2 in. Sweat Connection Low Voltage Motorized Zone Valve
ON-OFF and two-way low voltage valves consist of an actuator and valve assembly for controlling the flow of hot water and some models for steam.
• Manual opener (on all models, except straight-through, normally open valves) for valve operation on power failure; valve returns to automatic position when power is restored.
• All models may be installed without disassembling the valve.
• Compact construction for easy installation.
• Complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system.
• Actuator motor may be replaced without removing the valve body or draining the system.
• Chilled water models available for cooling and heating applications
24V 1/2 in. Sweat Connection Low Voltage Motorized Zone Valves
Maximum Close-off Pressure (psi)
Maximum Close-off Pressure (kPa)
Maximum Ambient Temperature (F)
Maximum Ambient Temperature (C)
4 in. high x 3-1/2 in. wide x 2 3/8 in. deep
101 mm high x 90 mm wide x 60 mm deep
4.4 A running with 26.4 A inrush @ 120 V
Approvals, Underwriters Laboratories Inc
UL Component Listed: File MH11826 Vol. 1
Valve designed for cycling (not constantly powered on) applications.
Use this valve in closed loop hydronic systems that do not contain dissolved oxygen in system water, such as fresh water from frequent source of makeup water.
