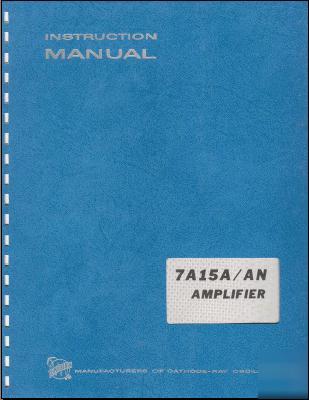

Tektronix 7A15A Service and Operating Manual in both Very High and in Standard Resolution PDFs on CD
Why settle for just one resolution? You get them both!
For page samples from this specific manual, click HERE.
As "bonus" material, includes the Tektronix Semiconductor Parts Catalog, plus an interesting and informative Articles PDF. Also, because so often TM500 series power modules/plugins are used in conjunction with the 7000 series instruments, this CD also includes a fully bookmarked, hyperlinked and text-searchable scan of the entire "TM500 Rear Interface Data Book", a "TM500 Modular Test & Measurement Instruments" 44 Page Brochure and the Publication "Suggested Power Supply Circuits for The TM500 Blank Plug-In Kit", all at no additional charge!
We appreciate your considering purchase of these very high-resolution and standard resolution scanned copies of the SERVICE AND OPERATING MANUAL for the Model 7A15A Amplifier Plugin used with the 7000 Series 'Scope Frames. These volumes are each composed of the entire contents of the original manual. We don't get into the page numbers game because "competitors" add blank and extraneous pages to achieve a higher page count. File sizes are determined by resolution and bit depth. We supply PDFs in both a very high res, sometimes larger than and sometimes merely equal to the competition's, and a faster, less resource-demanding "standard" resolution. The standard res A4 Manual PDF is also TEXT-SEARCHABLE.
This PDF Set includes maintenance and calibration procedures, complete parts lists, board component locators and schematic diagrams, plus full operating/application information.
Also, we include a "foldouts.pdf" with the A3 (11x17") foldout pages from the manual scanned full-size (one piece). Please note that the foldout pages are ALSO included as A4 scans (in other words, sectioned as 8.5 x 11" pages, with overlap) in the main manual.
SCAN PARAMETERS (Very High Res PDF):
Text with photos: 400-600dpi grayscale (contrast adjusted, content-dependent)
Text with Drawings: 600dpi black and white
Schematics: 600dpi black and white
Schematics and PCB Photos w/Color: 600dpi 256 colors
Scan parameters of the standard res PDF: The standard res PDF is done in resolutions that vary depending on individual page content, but are never higher than needed to produce a useable quality, quickly navigable file that will do the job without consuming more time and resources than are needed.
