Scotchman 5014-cm 59 ton ironworker with punch station
Scotchman 5014-cm 59 ton ironworker with punch station

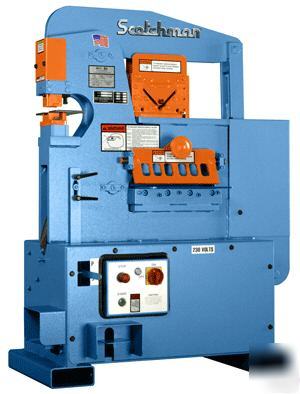

Scotchman 5014-CM 59 Ton Ironworker with punch station
The 5014-CM machine is Scotchman's popular 50 ton Ironworker. With 50 tons of hydraulic power, it has incredible shearing and notching capability to compliment the punching station. Comes standard with punching station, angle and bar shears.
* 50-ton punch station (1-1/4" in 1/2")
* Keyed punch ram for safety
* Punch nut with wrench and stripper
* One round punch & die: max. diameter 1"
* Angle shear: 4" x 4" x 3/8" at 90° and 2" x 2" x 3/8" at 45°
* 14" Flar Bar shear with 4-way reversible blade
* Electrical box supplied with emergency palm button and lock-out tag-out accommodations
* 230/460 volt / 3-ph electrics (must specify voltage) Add $345 for 220V 1ph
* All guards necessary to comply with ANSI B 11-5 standards
Scotchman 50 Ton Specifications
14" Length - 3/4" x 4" or 1/4" x 14"
Strokes per minute in light material
Strokes per minute in heavy material
* Picket Tool Housing (1/2, 3/4, and 1" available)
* Economy Fabricating Packages
