Victor 0781-1611 SR600-550-580 high presure regulator
Victor 0781-1611 SR600-550-580 high presure regulator
Scott-Gross Company, headquartered in Winchester, KY, was established in 1949 and is primarily known as a supplier of Industrial, medical, and specialty gases, bulk and cryogenic gases, dry ice, welding equipment and supplies, welder rental and repair, and propane exchange. Scott-Gross Company has retail stores located in Kentucky, Pennsylvania, Arkansas, Oklahoma, and Texas.
Victor 0781-1611 SR600-550-580 High Presure Regulator - NEW
Gas Service: High Pressure Air
Brand New - Victor 0781-1611 SR600-550-580 High Presure Regulator

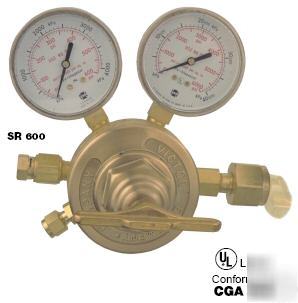

APPLICATION & USES SR 600 SERIES
Ideal where 350 or 550 (maximum) delivery pressures are needed
Dimensions: 7-1/2" W x 6" H x 5" D
Forged brass body and housing cap
2-1/2" gauges brass (6000 lb High Pressure, 600 lb. and 100 lb. Low Pressure)
External self-Reseating Relief Valve
CGA 540, 580, 346 have a maximum inlet pressure of 3000 psig
Maximum Inlet............5500 PSIG
Ranges......................................5-550 PSIG
Inlet Port...................................5/8"-20
Outlet Fitting.............................1/4" Swagelok Brass
Temperature Operating Range...0-140 F
Body...........................................Forged Brass
Spring Housing Cap.................Forged Brass
Diaphragm.................................Stainless Steel
Nozzle.........................................Brass
Seat.............................................PCTFE
Seat Return Spring...................Stainless Steel
Pressure Adjusting Spring......Music Wire
O-Rings......................................BUNA-N
To see full specifications, visit http:// /uplFiles/litLibrary/victor/018_65-2007.pdf
