Anritsu ME645A test set. frequency range of 0.1 - 12GHZ


Anritsu ME645A test set. frequency range of 0.1 - 12GHZ

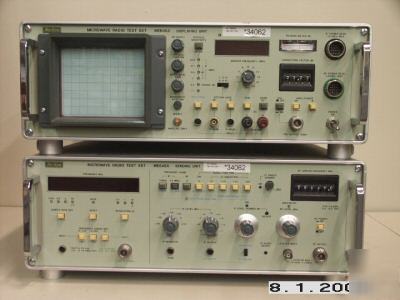

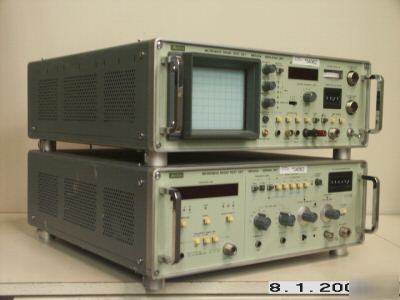

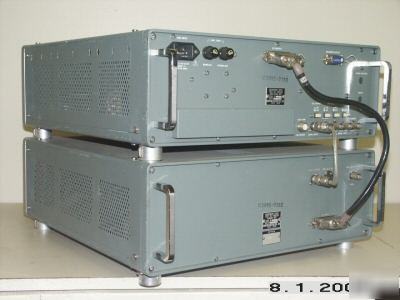

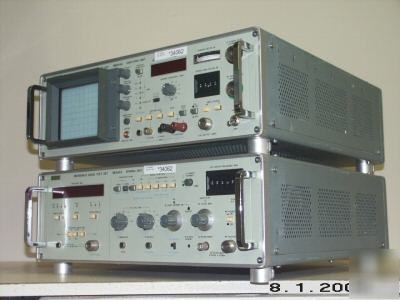

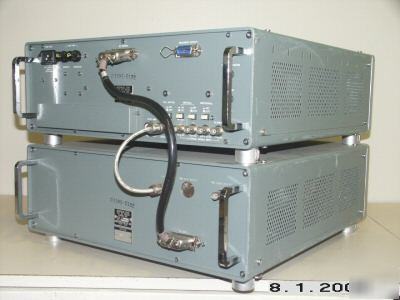

Anritsu ME645A 2 Piece Microwave Radio Test Set. With a frequency range of 0.1 to 12GHz. IF analysis,12Ghz RF head,10 - 300MHz IF head. It has the capabilities of a spectrum Analyzer, an RF- and IF- power meter, a digital frequency meter (counter) for RF to SHF, a IF and SHF - sweep generator all in one set.
* Absolute Measurement Accuracy
Within ±0.5dB,when using the 75ohms power head over the range 10 to 300MHz or the 50ohms power head over the range 100MHz to 11.7GHz, including the effects of ancillary equipment .
* Accuracy of Power Meter Alone
* RF band (5052)with low pass filter :
* IF band (75ohms) with low pass filter :
+10 to -30dBm without external pads or amplifiers .
±0.1 to ±100VDC and ±100 to ±999VDC
±0.3V on 100V range and ±3V on 999V range .
Provides a visual indication of the spectra of the total IF
bands of fo ±32MHz with a dynamic range of over 70dB .
* Scan Width Selection IF Bands
(fo =70MHz &74 .1 MI-17. fo is centered on display)
60dB (all other scan widths)
10dB sensitivity/cm of deflection
2GHz band :2 .11 to 2 .18GHz (option 003)
4GHz band :3 .65 to 4 .25GHz
6GHz band :5 .8 to 6 .5GHz
11GHz band :10.6 to 11 .7GHz (option 001)
* Frequency Setting Accuracy
* Frequency Setting Accuracy
14 to 300MHz directly and without prescaling.
At least 1Mohms shunted by less than 20 pF (14 to 135MHz) and 50ohms (14 to 300MHz)switchable .
15mV to SVrms without need for level adjustment.
±1 count ±Time Base oscillator stability.
All Items sell with 5 days right of return, and 15 days GUARANTEE on all parts and labor.
If in order to comply with our guarantee, we need to refund your money, you will get a FULL refund for the price of the unit...
If you need to make use of the 15 days Guarantee - We will fix, or replace, your unit. In case every attempt to fix or replace it fails, we’ll refund your money.
