> 230 ton, 20 oz. van dorn injection molding machine '89
230 ton, 20 oz. van dorn injection molding machine '89
230 ton, 20 oz. van dorn injection molding machine '89

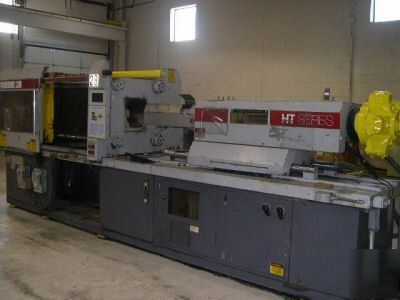

230 Ton, 20 Oz. Van Dorn Injection Molding Machine
Model: 230-RS-20F-HT New: 1989
Platen Size .............................. 32" x 32"
Distance Between Tie Bars ................ 22" x 22"
Clamp Stroke ................................... 20"
Maximum Daylight ............................... 42"
Mold Thickness (Min/Max) .................... 7"/22"
Ejector Stroke ................................ 4.5"
Pathfinder EL Control System w/ Open-Loop Control
Electroluminescent Screen w Closed-Loop Control
Variable Volume Piston Pump System
Proportional Relief & Proportional Directional
Potentiometer & LVDT Units For Positioning
Clamp, Core, Eject Motion / No Motion
Vented Barrel Package w/ Feeder
Dimensions: 22.3'L x 4.7'W x 7.8'H
Temporary Email: Luann.cameron@dontscrapit.com (Luann Cameron)
