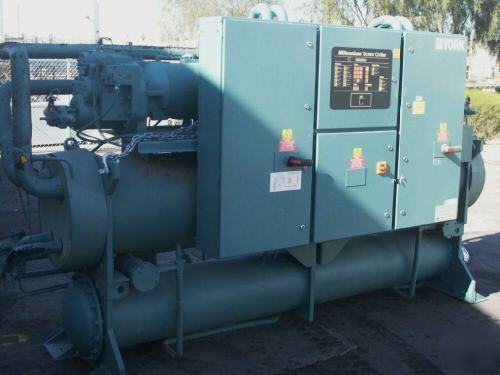

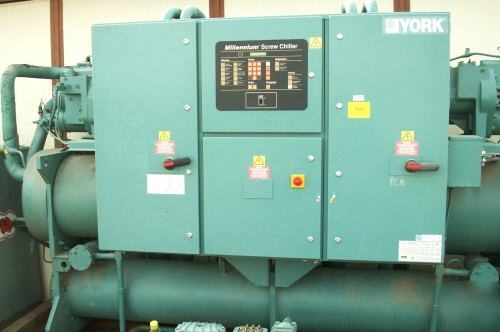

YORK MILLENNIUM LIQUID SCREW CHILLER
this unit is in GREAT condition and was used at Scottsdale airport for less then one yr and

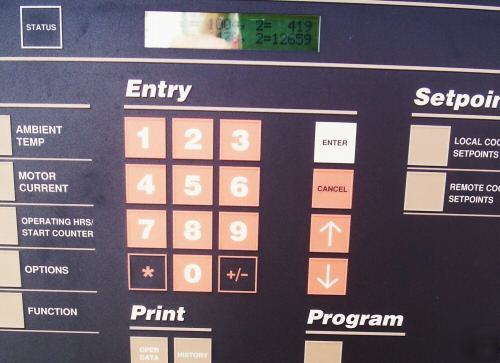

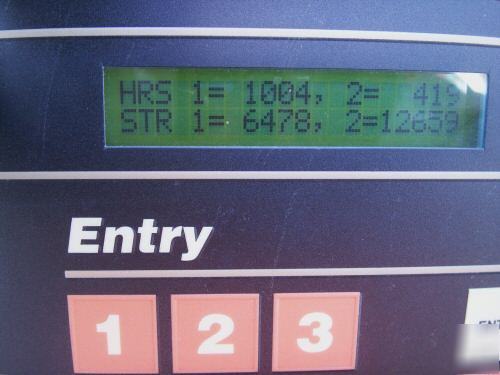

was replaced with a smaller 70 ton unit. it was way to over sized as u can see by the number of starts compared to hours.

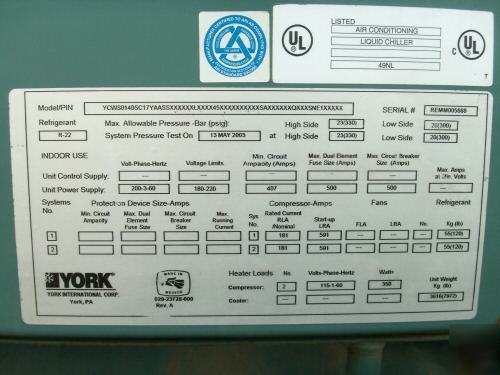

* MODEL YCWS English Data 0140SC
* Nominal Unit Capacity (Tons) 131
* Number of Independent Refrigerant Circuits 2
* Refrigerant Charge, R22, Ckt 1/Ckt. 2 (lbs.) 120/120
* Oil Charge, Ckt. 1/Ckt. 2, (gal.) 3/3
* Operating Weight (lbs.) 8809
* Compressors, Semi-Hermetic Twin Screw
* Nominal Size, Ckt. 1/ Ckt. 2 C/C
* Maximum Water Side Pressure (psig) 150
* Maximum Refrigerant Side Pressure (psig) 330
* Dia. X Length, inches 16 x 108
* Water Nozzle Connection Size, (inches) 5
* Evaporator, Direct Expansion - Code
* Maximum Water Side Pressure (psig) 150
* Maximum Refrigerant Side Pressure (psig) 300
* Dia. X Length, inches 19-1/2x 108
* Water Nozzle Connection Size, (inches) 8
Temporary Email: m.ayala@dontscrapit.com (Marie Ayala)
