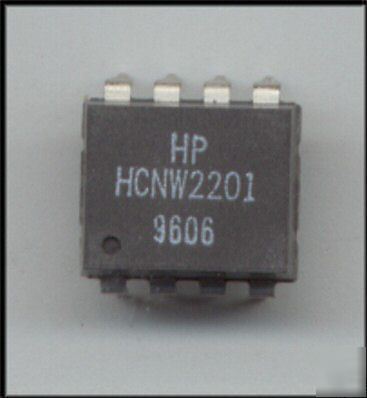

2201 / HCNW2201 / hp logic gate optocouplers
2201 / HCNW2201 / hp logic gate optocouplers
Now over 1,000 items in our Store!
This spec Sheet cover the following components:
?s Minimum Common Mode Rejection (CMR) at VCM = 1000 V (HCPL-2211/2212/0211/ 2232, HCNW2211)
• 300 ns Propagation Delay Guaranteed over the Full Temperature Range
• Low Input Current (1.6 mA to 1.8 mA)
• Totem Pole Output (No Pullup Resistor Required)
• Guaranteed Performance from -40
• Isolation of High Speed Logic Systems
• Computer-Peripheral Interfaces
• Microprocessor System Interfaces
• Pulse Transformer Replacement
The HCPL-22XX, HCPL-02XX, and HCNW22XX are optically-coupled logic gates. The HCPL-22XX, and HCPL-02XX contain a GaAsP LED while the HCNW22XX contains an AlGaAs LED. The detectors have totem pole output stages and optical receiver input stages with built-in Schmitt triggers to provide logiccompatible waveforms, eliminating the need for additional waveshaping.
