Bk precision 3011B 2MHZ function generator b&k dynascan
Bk precision 3011B 2MHZ function generator b&k dynascan

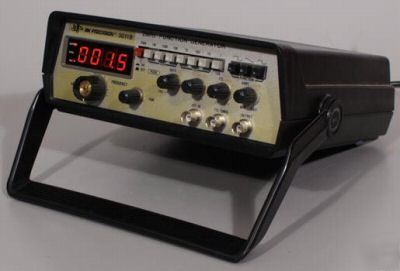

BK Precision 3011B 2MHz Digital Display Function Generator
Comes with a manual and what you see in the pictures. If you don't see it, you probably wont get it.
Specifications are from BK Precision and may vary slightly due to upgrades, options and revisions this unit may or may not have.
The unit is in working condition.
The Unit's Serial Number Tag Reads:
Basic Outputs: Sine Wave, Triangle Wave, Square Wave, TTL Pulse, and CMOS Pulse.
Frequency Range: 0.2 Hz to 2 MHz (7 ranges). Four digit frequency counter display.
Frequency Control: Separate coarse and fine tuning.
Maximum Amplitude: 20 V p-p (open circuit). 10 V p-p (into 50 ohm load).
Amplitude Control: Continuously variable
Output Impedance: 50 ohms +/- 6%
DC Offset: Continuously variable, from -10 V to +10 V (open circuit), -5 V to +5 V into 50 ohms.
Duty Cycle Control: Continuously variable from 1:1 to 10:1.
Distortion: 0.2 Hz to 20 kHz; < or = to 1%, 20 kHz to 200 kHz; < or = to 2%.
Frequency Response: 0.2 Hz to 100 kHz; < or = to 0.2 dB, 100 kHz to 2 MHz; < or = to 1 dB.
Symmetry: 0.2 Hz to 100 kHz; < or = to 2%.
Linearity: 0.2 Hz to 100 kHz; 98%, 100 kHz to 2 MHz; 95%.
Level: Continuously adjustable from 4 V p-p (+/- 1 V p-p) to 14.5 V p-p (+/- 0.5 V p-p).
VCF (Voltage Controlled Frequency) Input:
Input Voltage: Approximately +10 V (+/-1 V) causes 10:1 frequency change.
Impedance: Approximately 10 kohms.
Frequency Counter (Internal Only):
Accuracy: +/- Time Base Accuracy +/-1 Count.
Time Base Accuracy: +/- 10 PPM (23°C +/- 5°C).
Power Source: 120/220/240 V AC +/-10%, 50/60 Hz.
Dimensions (W x H x D): 9.65 x 3.75 x 11" (245 x 95 x 280 mm).
For More Pictures Please Click the Following:
* Picture 4 - Serial Number Tag
