> Square d transformer 150 kva 150KVA 150T3H 480/208/120V
Square d transformer 150 kva 150KVA 150T3H 480/208/120V
Square d transformer 150 kva 150KVA 150T3H 480/208/120V

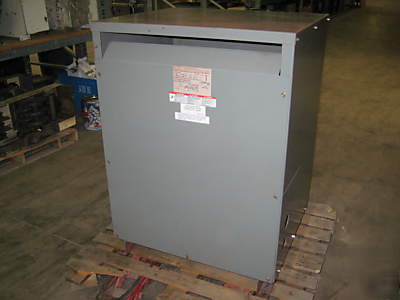

These Three Phase Transformers came out of an environmentally controlled facility where they were regularly maintained and serviced until factory shut-down. These transformers are in Great condition both Externally and Internally. The labels where the 'Square D' logo is at the top is faded as you can see in the picture.
Sorgel Three Phase General Purpose Transformer
H.V.: 480 H.V. Amps: 180 Hz: 60 %IZ: 5.1
L.V.: 208Y/120 L.V. Amps: 416 WT: 915 Class: AA
220 Degree C Ins System, 150 Degree C Rise Type: SO
Style No: 35149-17212-069 Date Code: 0505 Enclosure: Type 2

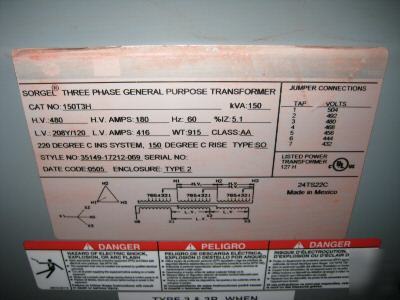

For additional specs, see picture of nameplate below
If you need more photos, I can send them to you. If you have any questions, I will do my best to answer them. Please be as specific as you can.
Our business has been in operation for over 20 years.
Temporary Email: loraine_marshall@dontscrapit.com (Loraine Marshall)
