Agilent hp 8903A audio analyzer with option 001
Agilent hp 8903A audio analyzer with option 001

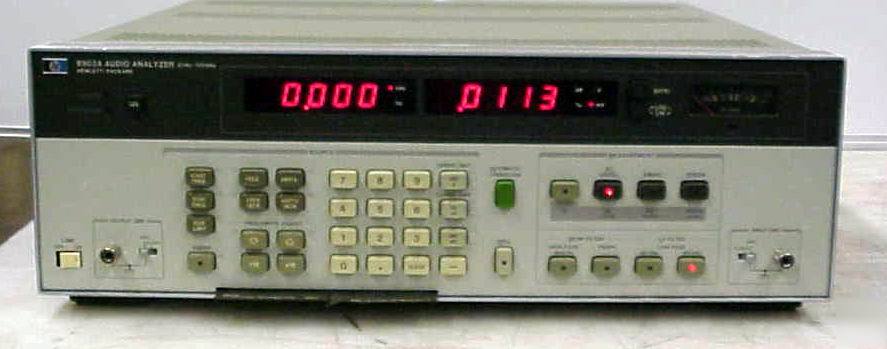

Agilent HP 8903A Audio Analyzer with Option 001
Agilent HP 8903A Audio Analyzer with Option 001
The 8903A Audio Analyzer provides automatic measurements of distortion, SINAD, signal-to-noise, frequency and many other parameters over a frequency range of 20 Hz to 110 kHz. To make these measurements easier the 8903A contains an internal low distortion (<0.003%) oscillator. Distortion is measured down to <0.003%. Additionally 3 filters, 400 Hz hi-pass, 30 kHz and 80 kHz low pass are provided to aid in removing unwanted signals. Input voltages can be measured from 300.0 V to 0.3 mV with a true RMS detector. SINAD is measured over a range of 0 to 99.99 dB with 0.01 dB resolution. An internal frequency counter will measure frequencies from 20 Hz to 150 kHz. Signal-to-Noise ratios can be measured over a range of 0 to 99.99 dB. Rear outputs are provided to allow for X-Y plotting. Excellent for an ATE system with built-in HP-IB.
* Option 001 = Rear panel connections instead of front panel for source output and analyzer input
Condition: Tucker Reconditioned.
Accessories: Operation Manual, Power Cord
LOC: CAROUSEL 3-16-2SKU: AB523REC01SN: 2420A04055Loc: Previously refurbished, this unit usually comes with a copy of the operating manual and available standard accessories.
