> Hp 8568B spectrumanalyzer, 2PIECESYSTEM, 100HZ--1.5GHZ,
Hp 8568B spectrumanalyzer, 2PIECESYSTEM, 100HZ--1.5GHZ,
Hp 8568B spectrumanalyzer, 2PIECESYSTEM, 100HZ--1.5GHZ,

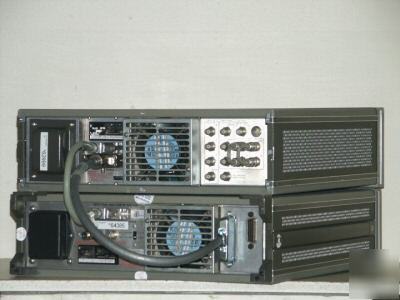

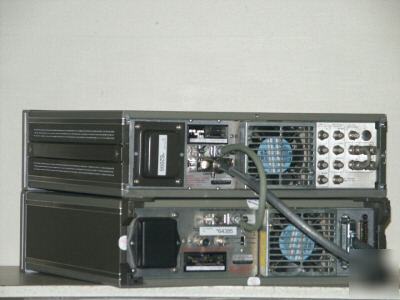

HP 8568B 2-Piece System. Spectrum Analyzer, 100Hz to 1.5GHz, -135 tp +30dBm. Synthesizer Frequency Accuracy and Stability. Synthesizer Frequency Accuracy and Stability. 10Hz to 3 MHz Resoltion Bandwidth, Direct Plot Capability over HPIB Bus. Consists of 85680A RF Section and 85662A IF/Display Section with Interconnecting Cables.
With Option 001 X 2 ( 75 Ohm ( BNC) 100KHz-1500MHz RF Input #1 )
A Sohisticated Phase Lock System Combines "Synthesizer-like" Tuning and Frequency Accuracy With Superio Local Oscillator Spectral Purity to Make Narrow Resolution Bandwidths Practical at RF Frequencies and Virtually Eliminate Long Term Drift. This System is Administered by an Internal Microcomputer.
The Frequency Measurement Range Extends From 100 Hz. to 1500 MHz. With DC and AC Coupled Inputs. The Analyzer's Measurement Capability Extends From RF Down to Audio Frequencies.
The Amplitude Measurement Range Extends From +30 dBm to -135 dBm With 90 dB Calibrated Display, and the Input is Protected From Accidental Overload. Calibration Units can be Selected From dBm, dBmV, dBuV, and Volts. The Analyzer Measures Signal Levels as Low as 32nV (Across 50 Ohms).
10 Hz to 3 MHz. Resolution Bandwidths are Used in a 1,3,10 Sequence. An Appropriate Bandwidth is Always Available to Provide Proper Resolution for any Frequency Span. A Narrow 10 Hz Bandwidth Makes Possible the Resolution of 50 Hz Sidebands That are >60 dB Below the Peak of a 500 kHz Signal, While Internal Line-Related Sidebands Remain Below the Filter Response. Wide 1 and 3 MHz. Bandwidths With "Gaussian" Shapes Improve Sensitivity and Transient Behavior When Measuring Impulse Noise, Such as Electromagnetic Interference, or Demodulating Wideband Spectra.
Single3 Sideband Phase Noise is >80 dB Below the Peak of a CW Signal at Frequency Offsets >30 Times the Resolution Bandwidth Setting, for Resolution Bandwidths <300 Hz. Single Sideband Phase Noise is Typically >80 dB Down and 200 Hz Away in a 10 Hz Resolution Bandwidth at 1500 MHz.
The Spurious Free Dynamic Range Measures >80 dB With <-50 dBm Signal Levels at the Input Mixer. Harmonic and Intermodulation Distortion Products can Typically be Measured >90 dB Below the Peak of a Signal.
High Repeatability and Features Such as Tunable Marker With Frequency Count Allow Measurements to be Made More Accurately and Conveniently Than Before. Les than 1 X 10 –9 /day Frequency Error, Together With spectrum Analyzer Selectivity, Make Counter Frequency Accuracy Possible Even When Measuring Small Signals in the Presence of Large Ones. An Internal Error Correction Routine Reduces the Amplitude measurement Uncertainty Due to Changes in Various Analyzer Controls. Under Automatic Control, the Analyzer's Exceptional Repeatability May be Used to Further Characterize Sources of Measurement Uncertainty, and Thereby Enhance Accuracy.

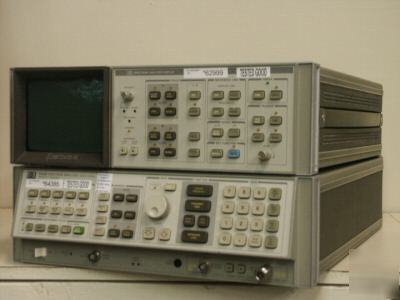

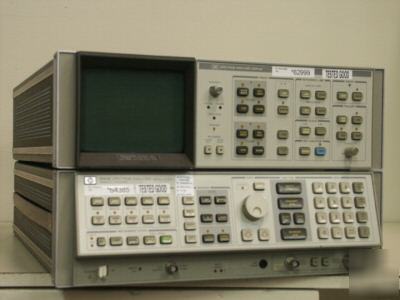

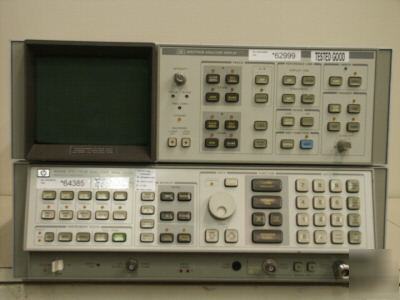

The Front Panel Concept of the HP 8568B is Innovative in Two Respects: A Comprehensive CRT Readout That Puts All the Information Where a User Needs it, And Interactive Function and Data Controls That Make Setting Function Values Very Convenient.
The HP 8568B Display is Fully Annotated, and Even Includes a Function for User Defined Titles. The Digital Display Flicker and Parallax-free, and can be Transferred Directly to a Plotter.
The Front Panel is Logically Designed and Easy to Operate. The Value of any Function on the Instrument can be Set Using a Knob, Step Keys, or Numeric/Unit Keypad.
All Items sell with 5 days right of return, and 15 days GUARANTEE on all parts and labor.
If in order to comply with our guarantee, we need to refund your money, you will get a FULL refund for the price of the unit...
If you need to make use of the 15 days Guarantee - We will fix, or replace, your unit. In case every attempt to fix or replace it fails, we’ll refund your money.
