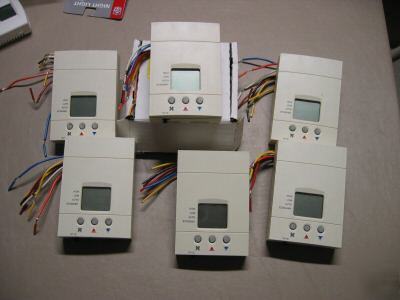

PSG Controls / Accustat digital fan coil thermostat Model #5-10251B
This thermostat is a 120VAC Heating and Cooling Digital Temperature Control. It is designed for use on 4-pipe and 2-pipe fan coil systems operating at 120VAC. Switching of load circuits is through relay contacts, allowing the control to switch pilot duty and fan loads. Fan cycles on/off automatically with calls for heating or cooling. Two speed direct drive capability for fan motors up to 1/6 HP. This thermostat operates from a single setpoint with automatic changeover from heating to cooling. There is built-in programming to alter the control characteristics to suit energy conservation needs.
* Temperature Monitor Range: 40.0 degrees F to 99.9 degrees F (5.0 C to 37.7 C)
* Setpoint Range: 60.0 degrees F to 85.0 degrees F (15.5 C to 29.5 C)
* Setpoint Default: 72 degrees F (22 C)
* Comfort Conditioning Limit Defaults: Cooling: 65.0 degrees F (18.5 C); Heating: 85.0 degrees F (29.5 C)
* Display Format: Liquid Crystal Display (LCD)
* Sampling Rate: Every 15 seconds
* Accuracy: +- 1 degree F (0.5C)
* Load Rating: 2 Amps heat/cool, 1/6 HP fan
* Fan Control: Selectable: Auto cycle, Low, High
* Heat/Cool Control: 1 heat and 1 cool circuit (2 Amps pilot duty)
* Default Temperature Extreme Prevention Limits: Maintains room temperature between 60.0 degrees F and 85.0 degrees F (15.0C and 29.5C) when thermostat is in economy mode.
* Fan Purge Timer: 30 seconds default, programmable 0 to 180 seconds
* Anti-short Cycle: 3 minute hold in no call state at all times
* Cycle Rate: 6 cycles per hour
