Wavetek model 148 20MHZ pulse function sweep generator
Wavetek model 148 20MHZ pulse function sweep generator

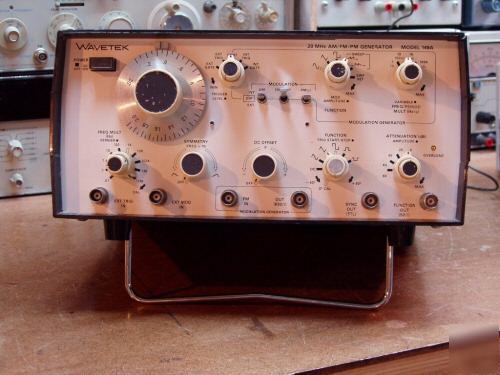

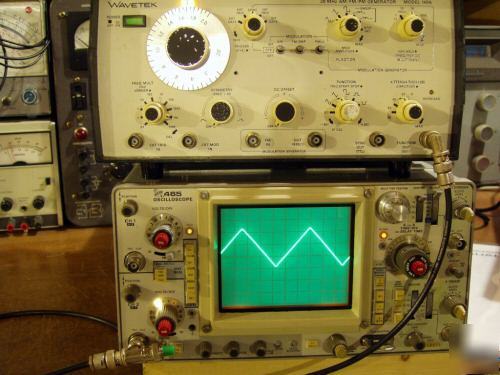

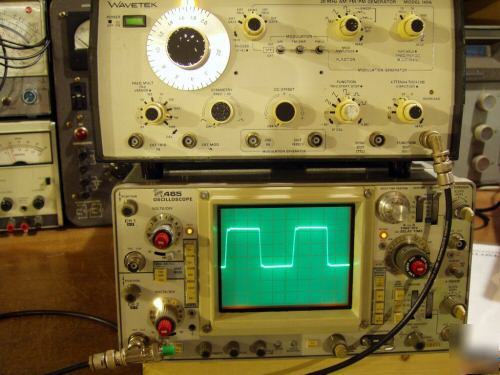

In addition to all the typical function generator capabilities, this generator can even be AM / FM / Phase modulated, or swept between two preset frequencies, using either the internal modulation generator or external signal sources. The internal Modulation Generator is essentially a second complete function generator, with seperate output, in the same unit. The Wavetek 148 is also capable of positive and negative pulse output and variable symetry for Sine, Triangle, and Square wave, output wave forms. The output can also be internally or externally triggered or gated, which is very useful for tone burst testing. There is also an internal TTL compatible trigger output provided by the modulation generator on the front panel.

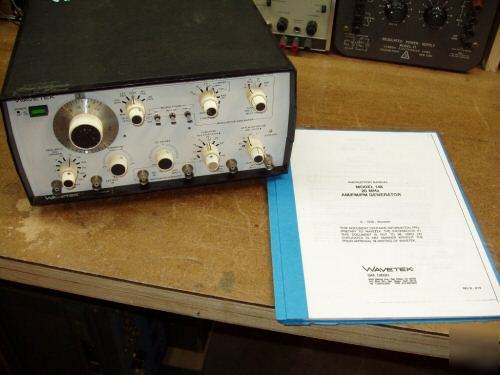

The unit comes with a complete copy of the operating / service manual including schematicdiagrams. A seperate comprehensive calibration procedure is also provided.
Temporary Email: jmooney@dontscrapit.com (Juliana Mooney)
