VAT adaptive pressure controller PM-5
PM-5 model 641PM-16PM-0002/075 with EPROM: 64PM.3C.39
PM-5 model 641PM-16NM-0002/006 with EPROM: 64PM.3B.00
PM-5 model 641PM-16PM-0002/050 with EPROM: 64PM.3C.00

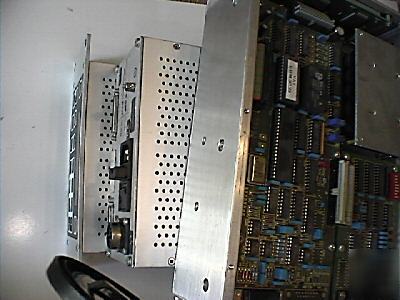

Have the above 3 available, these were on a demo tool only running inert gasses. All 3 power up OK.
Omes with hardcopy of PM4/5 install, maint and operating instructions.
Pressure controller for Series 64.0 valves (with stepper motor) and Series 64.2
The PM-4 / PM-5 controllers ensure fast and accurate pressure control. The LEARN function, being performed only one during system set-up, automatically determines all relevant system parameters.
During pressure control the pressure controller continiously adapts to the process conditions (gas type, gas flow). No parameter inputs are necessary.
The PM-4 / PM-5 controllers are provided with a positions control mode that allows to control any valve position between 'open - closed' with selectable speed.

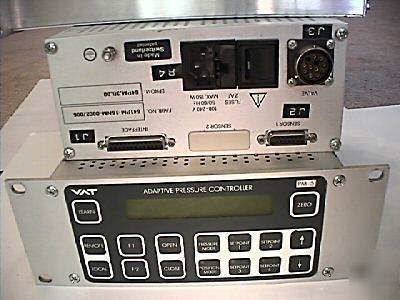

The PM-5 controller can be operated locally via keyboard and display on the front panel. In combination with a service box the PM-4 controller can also be operated locally.
The PM-5 controller has a large display for pressure, position and status information. The pressure can be displayed in various ranges (0-1, 2.5, 5, 10,20...1000) and units (mbar, kPA, Pa, Torr, mTorr)
By means of a remote control interface the controllers PM-4 /PM-5 can be controlled by a host system
- opening and closing of valve
- control mode and setpoint selection
- LEARN, zero adjust, and hold
- valve position open and closed
- pressure and position setpoints
- current pressure and valve position
- operation of all functions, selectable baudrate (110 - 19200)
- opening and closing of valve
- valve position open and closed
This function is available as an option. It automatically closes the valve at power failure.
0.1 % of the sensor full scale range
0 - 1 V, 2 V, 5 V, 10 V (selectable)
+ 15 V (± 5 %), max. 1400 Am *)
- 15 V (± 5 %), max. 1400 Am *)
*) total for both sensors wiht 2-sensor version
Digital: control with relay contacts or optocouplers
Digital: potential-free relay contrcts max. 70V, 500 mA, 10W
241 x 88 x 264 mm (9.5" x 3.5" x 10.5") ½ of 19" rack insert, 2 height units
2.6 kg (5.7 lbs) / 3.4 kg (7.5 lbs)
http:// /publicCatalog/catContent.aspx?pLandCd=US&pPage=index.shtml&stepNo=3&guid={E5648CDD-DEC0-454C-B827-529670E48518}&reiheTyp=C#
Or here, in the catalog section under Control valves header.
