3' donau "rapid" model DR28Z high accuracy radial drill


3' donau "rapid" model DR28Z high accuracy radial drill

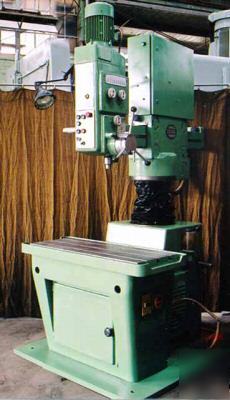

3' DONAU "RAPID" RADIAL MODEL DR28Z HIGH ACCURACY RADIAL DRILL
Motor Driven With 2 HP, 3 Phase, 60 Cycle AC Spindle Drive. Motorized Clamping. 4 HP Elevating Motor.
16" X 42" T-Slotted Work Table. Pushbutton Tapping. Pushbutton Clamping. Pushbutton Elevation. T-Slots For Add-On Left Hand And Rear Tables. Work Light
Drill Capacity Cast Iron: 1.375"
Tapping Capacity Cast Iron: M36
Size of T-Slotted Table: 16" x 42"
Spindle to Column, Maximum: 32.7"
Spindle to Table, Maximum: 29.5"
Spindle to Table, Minimum: 11.8"
Vertical Adjustment of Head: 15.25"
Number & Range of Spindle Speeds (18): 45-2240 RPM
