3-axis professional dro RF30-45 mill/drill kit


3-axis professional dro RF30-45 mill/drill kit

Incredible Precision, Productivity and Value is combined into our Professional Mill/Drill DRO Kit! A Digital Read-Out System built for Accuracy, Toughness and Ease of Use! Kit is an easy installation on all common Mill/ Drills both Geared & Belt Driven models.
Pro System are Tough! They’re Shop proven in Tens of Thousands of locations under adverse machining conditions for over 40 years. Our Sealed Glass Scales are Dust, Fluid & Swarf Resistant. A Sealed Precision Die Cast Display casing protects electronics and has a Splash Proof face. System has exceptionally resistant too EM interference

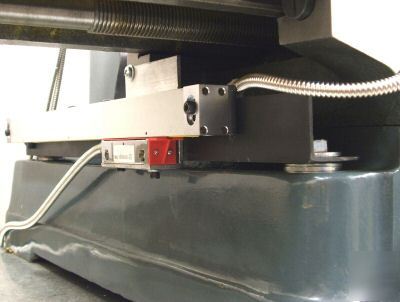

Scales: Our enhanced Grid scale technology provides superior accuracy and dimensionally stability. Scale are double Sealed with an Outer Chip deflector along with oil proof, fluid resistant inner Seal. Scale encoder rides on 5 precision ball bearing.
The Total Package! System supplies 3- Axis Milling capabilities and features that enable most Offsets, Angles and Curves along with quick repetitive part production. Everything needed for operation and Installation is included. Our exclusive drop-in Mounting Kit includes brackets and hardware. This is a Spindle milling System designed for a Mill/Drill. Digital Display Spindle Scale is an integral part of your DRO System! Our 2-axis Display calculates and displays needed Z-axis positional movements.
PRO System is a major advance in Machining Measurement Technology providing a Flexible & Scalable measurement system. Basic usage eliminates dial reading and backlash compensation, sight positioning errors and need for layout. This alone provides an incredible increase in both speed and accuracy. Use what you need from simple X, Y & Z positional measurement too more advanced capabilities.
A clearly written operational manual written by an American machinist is included with each kit! A large 200 point SDM memory allows rapid repeat part reproduction. Usage of a 6 way Tool Offset feature will further increase your capabilities. These Features allow you to take on the Tough tasks radius, pockets and more for tool & die making, prototyping and other machining operations.
PC Ready: Cabling and Windows Software is included with System Purchase. Software requires a Windows 98 or better Operating System. Supports Display and Data input/output.

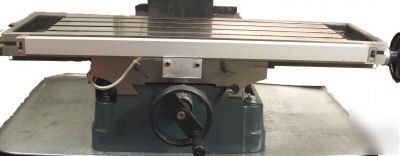

Round Column RF30-40 Mill/Drill: Has one major weakness it is loss of position when head is moved on column! With DRO installation X & Y positioning is retained and our system will eliminate 95% of your need too Tram or calibrate head after each change in height position. Higher resolution 0.00004”/0.001mm Glass Scales are available as a $75.00 upgrade useful for CNC operation.

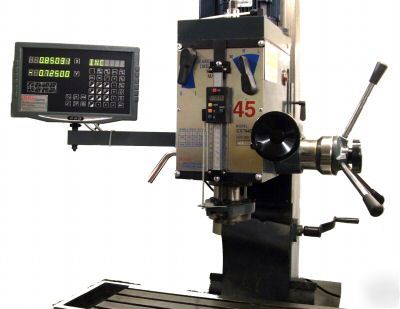

Square Column RF45 Mill/Drill: Upgrade to a full 3-axis Display and includes a 20 inch 0.0002 resolution Glass Scale for Column attachment is an additional $250.00. Higher resolution 1um/0.00004” scale upgrade is $75.00. Standard table length on these machines is approximately 32.5 inches.

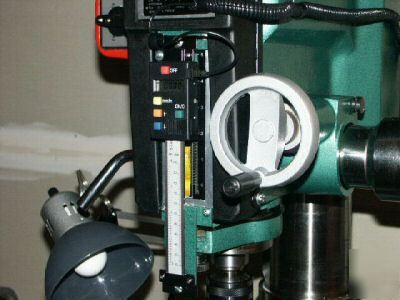

A 5 inch LCD display scale of 0.0005” resolution provides accurate Z-axis positioning and includes our direct attachment Mill/Drill spindle kit. Most users will find complete kit installs in about 2 to 3 hours. Installation requires only basic hand tools a #10 x 24 tap, caliper and indicator. Total installation needs only 2 new attachment points; balance of kit installs using existing fastening points. Kits are complete with everything included for standard operation!
SMW Precision is located in Spokane, Washington and specializes in Measuring Systems. Sales and technical Support is available at (***)-533-9016 (Toll Free) between 9am & 5pm PST week days. We provide full warrantee service and technical support for all our products.
All systems have a 14 day evaluation period!

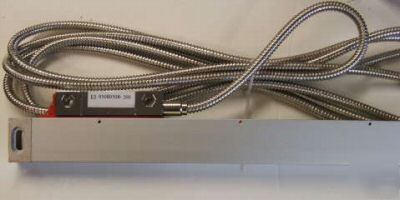

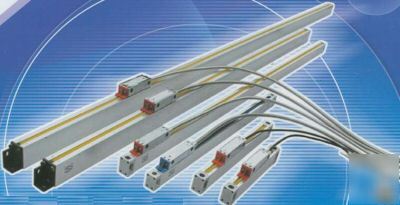

Scales are the Key to a DRO system ours are High Precision Sealed Glass. It is Linear Accuracy and Repetitive Accuracy that are the core comparison points between DRO Systems.
Transmission optical infrared measuring system ,Infrared wavelength:880mm
The reading unit rolling system
90 degree five ball bearing rolling system
45 degree five ball bearing rolling system
Temperature 32-105° Moisture?90(20±5°)

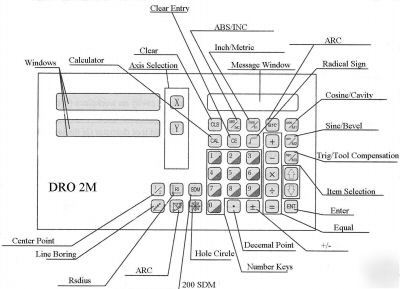

* Machining Calculator w/result transfer
* PC RS232 Interface & Cabling
* Inch/ Metric Interchange (Any Point)
* Inside or Outside Radius Smooth or Simple
* Soft OFF & Battery Memory Backup
* 5 resolution settings & Axis direction setting +/-

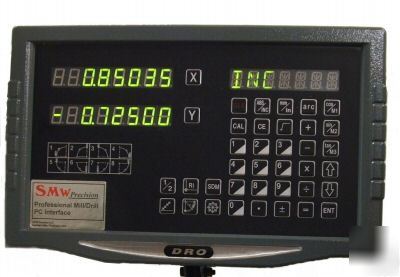

Display features and functions are built to streamline the machining process and increase productivity. There are no complex menu’s and functions are easy to learn and quick to use.
Power requirements 120 or 240 volt single phase 50-60hz
* 120 volt power cable Standard
* On/Off Toggle Switch on back
* Clear Plastic Display Cover
Your Satisfaction is Guaranteed- If your DRO System kit is not every thing we have promised notify us within 14 days after delivery for a full purchase price refund! Kit must be returned in salable condition.
