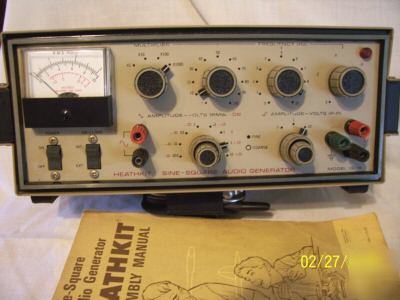

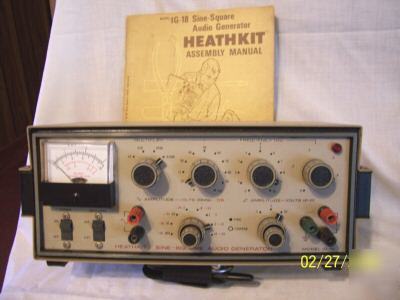

Heathkit model ig-18 sine-square wave audio generator
Heathkit model ig-18 sine-square wave audio generator
Heathkit Sine-Square Wave Generator
This Generator has been designed for laboratory use as well as for service and testing.
Sine wave signals are available between 1Hz and 100kHz . Very low distortion.
The output is stepped from .003 volt to 10 volts.
Great for testing audio amplifiers for gain and frequency response.
As a signal source for harmonic distortion measurements .
Square Wave signals with a rise time of 50 nanoseconds are available from 5Hz to100kHz at output
The sine & square wave frequencies are identical and the level of each is independently adjustable.
Both signals may be used either simultaneously or independently.
Other features include: A panel meter for monitoring the sine wave output.
Solid state circuitry for maximum reliability.
Power Requirements-105-125 VAC 50/60 Hz- 6watts
Dimensions- 5-1/8" high x13-1/4" wide x 7" deep
Clean and in very good condition
Temporary Email: A_Richard@dontscrapit.com (Alan Richard)
