Power unit for hydraulic lift
Power unit for hydraulic lift

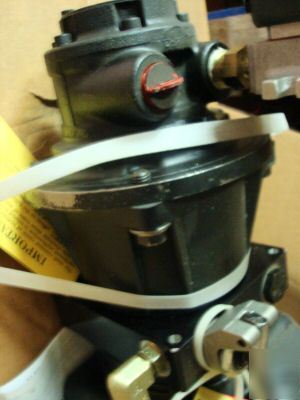

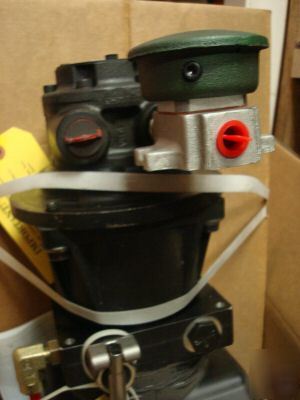

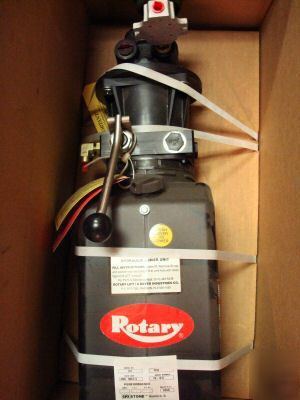

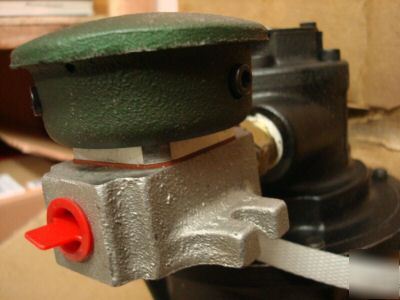

2000420 2.8HP GLOBE VANE AIR MOTOR W/MUFFLER & MANUAL VALVE 2-WY N.C.
9/16-18 SAE PRESSURE-RETURN PORT (2) 3/8-16 X .38 DP. MOUNTING HOLES
BLACK PLASTIC 6.5 QUART HRIZ. OR VERT. (TANK DOWN) MOUNTING, BREATHER-FILL PORT , & BLEED SCREW
CHECK VALVE (CARTRIDGE STYLE) MANUAL RELEASE VALVE (CARTRIDGE STYLE)
NAMEPLATE AND LABEL PER STD 2.16.59 TO TANK. OTHER LABELS LOCATED AS SHOWN AFFIX TAGS TO STRAINER ASSY WITH CABLE TIE
1 UNIT INDIVIDUALLY PACKED WITH 1 EACH 2148-AA, 2868-AA, Q4-1000-00 PER CARTON
.90 G.P.M. AT 80 P.S.I. AIR PRESSURE
AT 3050 P.S.I. (45 CST 200 SSU)
.52 G.P.M. AT 40 P.S.I. AIR PRESSURE
AT 3050 P.S.I. (45 CST 200 SSU)
THIS POWER UNIT DOES NOT CONTAIN DEVICES WHICH PROTECT USERS FROM THE EFFECTS OF SUDDEN LOSS OF PRESSURE IN HYDRAULIC CYLINDERS.
