> 4" 2HP motor for submersible water pump, deep bore well
4" 2HP motor for submersible water pump, deep bore well
4" 2HP motor for submersible water pump, deep bore well

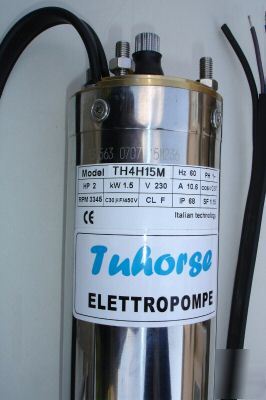

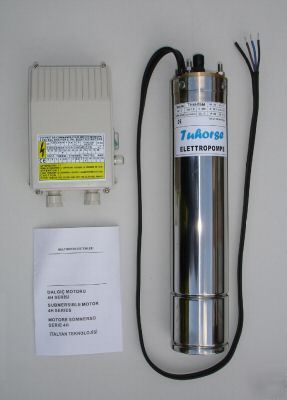

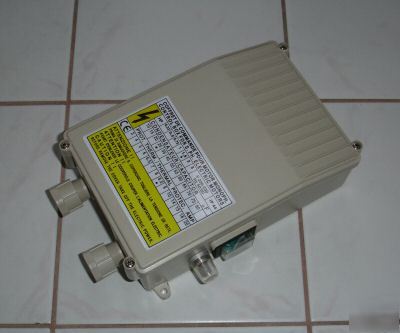

On display is a Brand New, in original boxes, 4" 2 HP Submersible Motor + Control Box. Pump End is not included. This motor is made in accordance to NEMA standard and is compatible to the 4" Bore Well Pump that require 2HP Motor. If you have a 2HP defective motor but the pump is still in good shape, this motor and the control box are most likely the right replacement parts for you.
l Just slightly under 4â€Diameter,meet industrial standard, stainless steel housing
l Fit most 4" submersible multistage bore well pump with NEMA standard that require 2 horse power motor
l 2HP (1.5kw), 4 feet power wire (3 wire + 1 ground)
l 230V,60Hz, 10.6Amps, 3345 RPM(adaptable to 3000-3450 RPM Pump)
l Manufactured under ISO 9001:2000
l Confirm to international standard of IEC34-ICE
l Net weight 26Lb.(12Kg); Net length: 18.5â€(470mm)
This series of pumps are multistage centrifugal pumps designed for permanently immerse operation. The motor is connected to the pump by means of a support designed in accordance with NEMA standard. The impeller, supported by the motor shaft, rotates inside vane diffusers which
transfer the liquid leaving each impeller towards the suction opening of the next. Once the liquid has passed through the impellers, it is expelled
via the delivery opening. Each impeller and its respective vane diffuser constitutes a pumping stage which, according to the operating principle of
centrifugal machines, generates a pressure increase in the fluid that added to each subsequent pressure increase induced by the other stages in series.
These pumps are suitable for pumping clean water and fluids with a sand content of less than 150g/cbm. Their high performance and
working dependability make them suitable for civil use and different industrial uses, such as automatic distribution of water in conjunction
with surge tanks, irrigating gardens, in washing and pressure-boosting systems and fire-fighting purposes.
A long power cable from the Motor to the Control box is not included.
