Smc MGPM20-200 compact pneumatic slide + d-Z73 sensors


Smc MGPM20-200 compact pneumatic slide + d-Z73 sensors

* 20 mm bore x 200 mm stroke with 12 mm diameter guide rods
* Pneumatic service rated for 1.0 MPa (145 psi)
* Includes two adjustable shock absorbers built into the rear of the body. With the shocks removed, the stroke is limited to 168 mm and with them installed at the minimum position, the stroke is limited to about 150 mm.
* Includes two SMC D-Z73 Reed switch sensors with indictor light, 2-wire, operate on 12 VDC, 24 VDC or 100 VAC and in-line type
* Tooling plate measures 30 mm x 81 mm x 10 mm thick and is constructed from nickel plated steel
* Includes two SMC 6 mm tube QD flow controls
All of the mounting surfaces are unharmed and this unit is spotless.

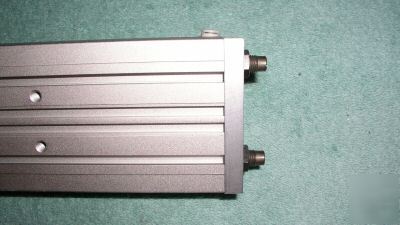

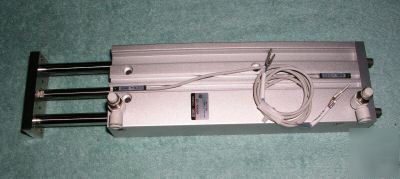

* The picture shown is the actual item(s) being sold and everything that is included is shown or listed in the ad.
* Unless noted in the ad, I securely package all items and double box any item in OEM packaging.
