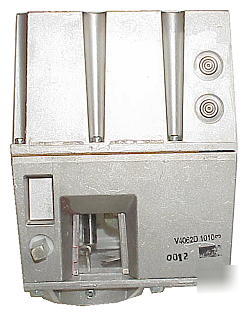

Honeywell actuator V4062D1010 (30823)


Honeywell actuator V4062D1010 (30823)

HI-LO-OFF actuator with Proof of Closure normally used on V5055C,E/V5907C,E valve bodies (Low Pressure )
Use with V5055 or V5097 Gas Valves to control gas supply for commercial and industrial burners. Valve opens to low fire position when power is applied; valve opens all the way on demand.
• Provide final safety shutoff service when used with V5055 or V5097 gas valve.
• One-second maximum closing time.
• Continuously displays the valve position with a red indicator when open and a yellow indicator when closed.
• Mount in any position directly to valve bonnet with three setscrews.
Product Specifications Back To Top
Description HI-LO-OFF actuator with Proof of Closure normally used on V5055C,E/V5907C,E valve bodies (Low Pressure )
Timing (Closing) < 1 sec Yes
Electrical Ratings 120 Vac
Internal Auxiliary Switch No
Maximum Operating Pressure (psi) 5 psi
Temperature Range (F) -40 F to +150 F
Temperature Range (C) -40 C to +66 C
Proof of Closure Auxiliary Switch Yes
Proof of Closure (Factory Mutual) Switch Contact Ratings 9.8 AFL, 58.8 ALR, 1/2 hp
Proof of Closure (Factory Mutual) Switch Contact Ratings 4.9 AFL, 29.4 ALR, 1/2 hp
Temporary Email: AHarvey@dontscrapit.com (Alexandria Harvey)
