New multi-format pc/mac computer monitor tester MT160
New multi-format pc/mac computer monitor tester MT160
Manufacturer Website: http:// /index.html
Photobucket - Video and Image Hosting

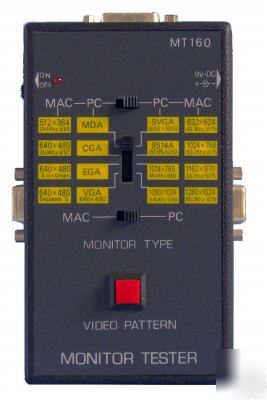

This is an easy-to-use handheld video monitor tester that generates a wide variety of test patterns for comprehensive testing, calibration, and repair PC & Mac computer monitors and other video equipments. The MT-160 delivers the quality and functionality you would expect from an expensive high end video monitor tester at a very affordable price. The MT160 features a wide range of testing resolutions ranging from 640x350 to 1280x1024. The video patterns generated by the MT160 include Color Bars, Cross Hatch, Dot, Checker, and Raster. Three separate monitor connectors output eliminates the need for any additional adapter. With its easy to understand interface, the MT160 is designed to meet the need of people from all levels ranging from novice to video professionals.
♦ Supports 16 computer monitor scanning modes (8 PC modes and 8 Mac modes)
♦ 17 total video test patterns including COLOR BARS, CROSS HATCH (choose from White, Red, Green, and Blue), DOT (choose from White, Red, Green, and Blue), CHECKER (choose from White, Red, Green, and Blue), and RASTER (choose from White, Red, Green, and Blue)
♦ Single push button selectable patterns with hold down reverse
♦ Three separate monitor connectors
♦ AC adaptor power source or standard 9V battery operation
♦ Ideal for on-the-bench and in-the-field testing
♦ Easy to use, lightweight, and portable
♦ 3 Video connector: Digital/TTL 9-D; Analog 15-HD; Analog 15-DB
♦ Dimension: 3.8" x 5.7" x 1.5"
