> Lot of 10 sentrol 1078 series steel door contacts

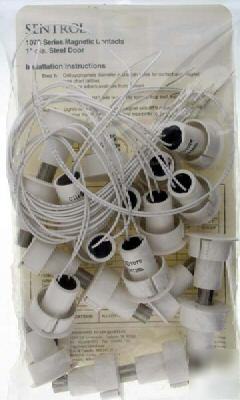

Lot of 10 sentrol 1078 series steel door contacts
Lot of 10 sentrol 1078 series steel door contacts
Sentrol 1078 Steel Door 1" Dia. Contacts
Magnetic Contacts, 1" Diameter, Steel Door
The Sentrol 1078 Series Steel Door contacts are designed specifically for use in the steel doors commonly found in commercial building applications. The unique housing design features a rugged unibody construction with flexible ribbed sides for quick, secure installation without gluing. The magnet housing isolates the magnet from the surrounding steel for maximum gap distances, both make and break.
For more info see the Sentrol 1078 Datasheet PDF.
* Product: Recessed Steel Door, 1" Dia. Contact, Wire Leads
* Diameter [Nominal]: 1.0 in
* Enclosure Material: Flame retardant ABS
* Environmental Specifications: 1
* Output Current: Hermetically Sealed Reed Switch Encapsulated in Polyurethane
* Flange Diameter [Nominal]: 1.2 in
* Lead Type: #22 wire / 0.05" (0.15cm)
* Life Cycles (Under Dry Circuit) [Nominal]: 1.0E7
* Life Cycles (Under Full Load) [Nominal]: 100000.0
* Operating Temperature [Minimum]: -40.0 °F
* Operating Temperature [Maximum]: 150.0 °F
* Response Time [Nominal]: 1.0 ms
