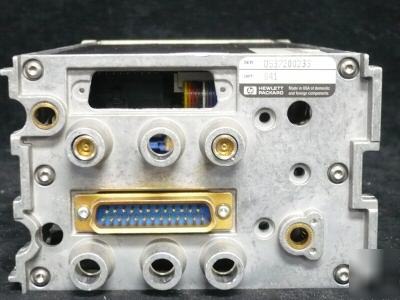

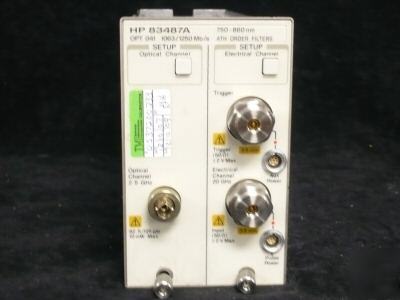

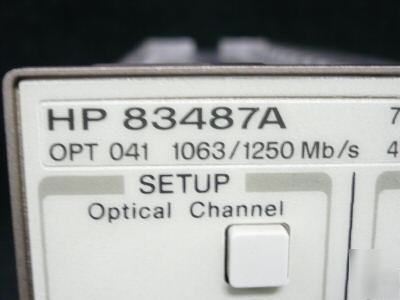

Hp 83487A optical/electrical 3GHZ/20GHZ module opt 041
Hp 83487A optical/electrical 3GHZ/20GHZ module opt 041
Option 041 - 1063 Mb/s & 1250 Mb/s 4th Order Filters
* Tested and Working within Manufacturors Specifications
The Agilent 83487A optical/electrical plug-in module is one of several plug-in modules available for the Agilent 86100A, 83480A and 54750A mainframes.
The purpose of the plug-in module is to provide measurement channels, including sampling, for the mainframe. The plug-in module scales the input signal, sets the bandwidth of the system, and allows the offset to be adjusted so the signal can be viewed. The output of the plug-in module is an analog signal that is applied to the ADCs on the acquisition boards inside the mainframe. The plug-in module also provides a trigger signal input to the time base/trigger board inside the mainframe.
* Integrated, calibrated optical channel.
* 2.85 GHz optical channel bandwidth and user selectable 12.4 or 20 GHz electrical channel bandwidth.
* 750 nm to 860 nm wavelength range.
* Optical channel has 1063/1250 Mb/s datacom filters.
* 62.5/125 ìm (maximum) multimode, user selectable optical input connector option.
* Electrical measurement channel.
* Trigger channel input to the mainframe.
* 3.5 mm (m) connectors on the electrical measurement channel and trigger channel.
* One probe power connector.
* One auxiliary power connector.
Sold with 7 day right of return if unsatisfied.
