Hp E1345A b-size vxi 16-channel low-offset relay mux
Hp E1345A b-size vxi 16-channel low-offset relay mux
Agilent / HP E1345A B-Size VXI 16-Channel Low-Offset Relay Multiplexer

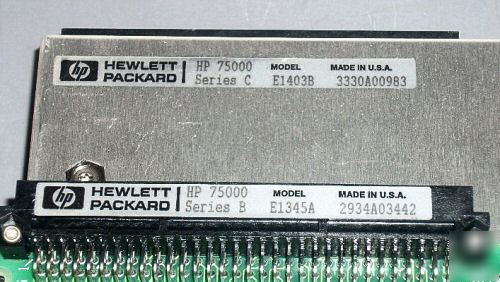

Includes E1345A Connector Block & E1403B C-Size Adapter Module
This link for E1345A spec sheet from Agilent http://cp.literature.agilent.com/litweb/pdf/5965-5601E.pdf

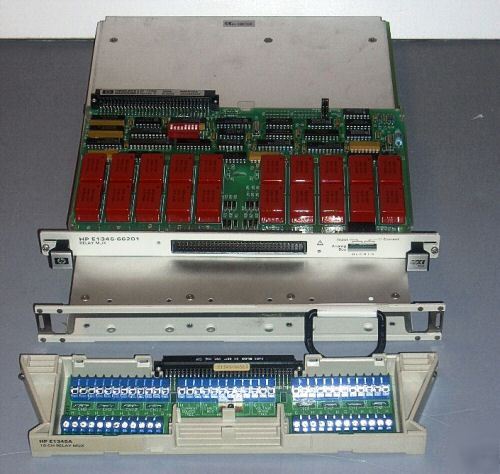

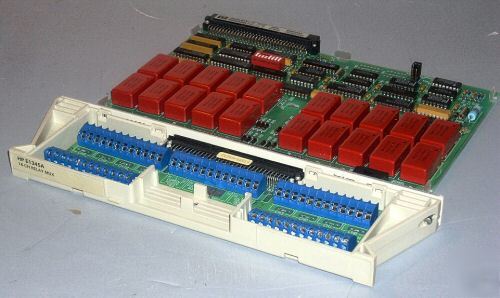

* The Agilent E1345A General-Purpose Reed Relay Multiplexer is a B-size, 1-slot, register-based VXI module that switches 16 channels of high, low, and guard each. The multiplexer has low thermal offset performance. This module consists of a B-size component card (labeled E1345-66201) and a screw terminal block that plugs onto the component card. The E1345A is functionally similar to the E1347A.
* The E1345A multiplexer is arranged into two banks of eight switches, each having its own common high, low, and guard screw terminals accessible on the terminal block. Tree-switched common high, low, and guard screw terminals and analog bus connections provide access to all 16 channels. The module may be programmed as either a single 1 x 16 three-wire multiplexer, two independent 1 x 8 three-wire multiplexers (for four-wire &omega) or a 1 x 8 six-wire multiplexer.
The E1403B adapter module is needed in order to install the E1345A in a C-size mainframe
* The Agilent E1403B VXI carrier adapts A- or B-size VXI or VME modules for use in all C-size VXI mainframes. P1 which is the only connector available, is a fully buffered extension. The E1403B provides slave-only capability and cannot be used in Slot 0 or with bus masters.
This link for E1403B spec sheet from Agilent http://www.home.agilent.com/agilent/product.jspx?cc=US&lc=eng&ckey=1000002461:epsg:pro&nid=-536900577.536879329.00&id=1000002461:epsg:pro

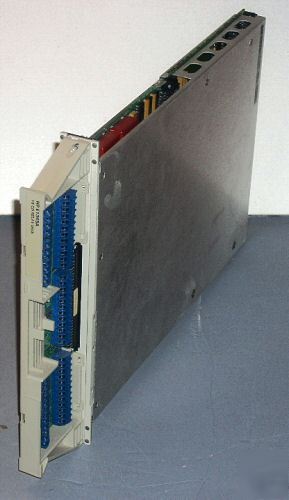

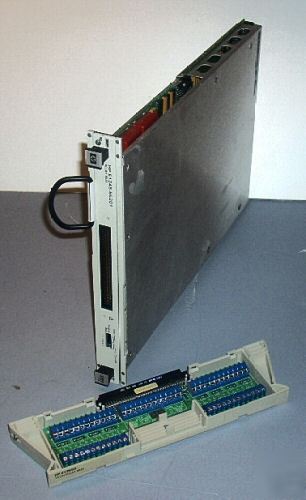

This unit is in Mint condition inside and out ,Please look at the photos
Sold With 3 day right of return
As long as seller is notified before the 3 day inspection is up the item can be returned
Beyond a basic power up and/or self test if that function is available. I try to describe as accurately as possible and list as much as I know about the item. I also pop the covers when able and inspect for missing or burned components, water damage, obvious signs of attempt at repair, and anything else that is obvious to someone with a limited technical background
