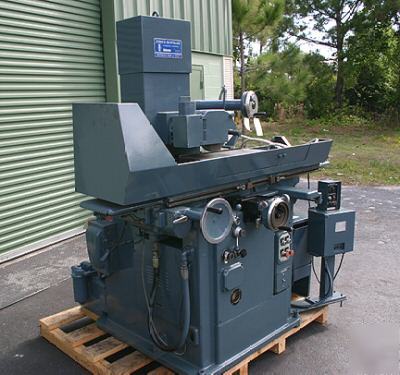

Jones & shipman 2 axis hydraulic surface grinder
Jones & shipman 2 axis hydraulic surface grinder
Longitudinal grinding limit 27"
Longitudinal table traverse, max. 29"
Cross traverse grinding limit 12"
Cross table traverse, max. 11 1/4"
Vertical traverse of wheel head, max. 12 1/4"
Clearance on table w/new wheel 12"
Work table 11" x 27" w/3 tee slots 9/16"
Hand, fine adjustment graduated in 0.0001"
Automatic, range per stroke 0.015 - 0.15"
Vertical, graduated in 0.0005"
Fine adjustment, graduated in 0.0001"
Wheels speeds (giving 5300 f/p/m) 3 speeds w/3 step pulley
Wheel speed w/new 10" wheel 2050 rpm
Wheel speed w/ 7 3/" wheel 20 rpm
Standard grinding wheel 10" x 2" w/3" bore
Wheel flanges will accommodate 3/4" - 2" wide wheels
Wheel speed w/6" wheel 3300 rpm

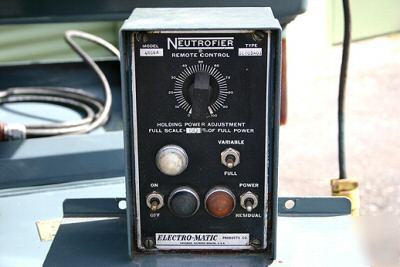

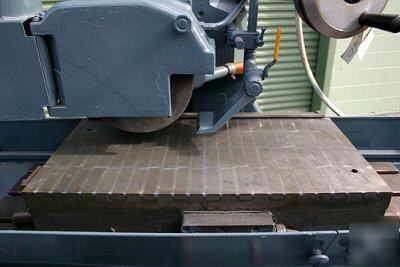

12" x 24" Electromagnetic Chuck with Electromatic 4RC6A Control
Price, FOB PORT ORANGE, FL $9,950.00
Will load on your flatbed truck. Give us your zip code and we'll quote you a discounted rate.
