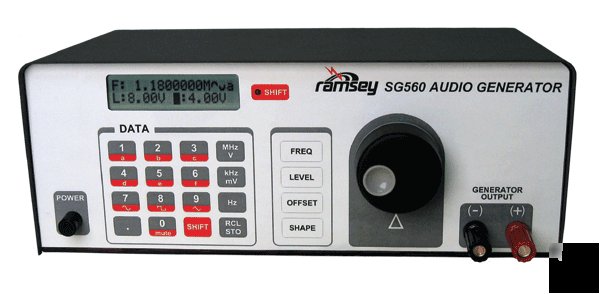

DC to 5 MHz...In 0.1 Hz Steps!
* Frequency range 0 Hz to 5 MHz with 0.1 Hz resolution
* 0 to 10V peak to peak output level
* Sine, Square, or Triangle waveform output
* Factory assembled and tested
Thousands of our SG550 signal generators found homes on both hobbyist and professional benches around the world. It covered 1Hz to 50KHz with the stability, accuracy, and price that everyone loved. Now we are proud to announce the next generation, the SG560 Signal Generator!
To begin with we increased the frequency range all the way up to 5MHz and all the way down to 0Hz (yes, we mean zero...or DC!) continuously in 0.1Hz steps across the entire range!
Next we increased the output level to go up to 10V peak to peak in the sine wave, square wave, or triangle wave forms. You can also provide a DC offset to the output allowing you to create a wide variety of signals for testing and experimenting. Recreate TTL, 4000 series logic levels, low voltage logic levels, AC waveforms with a DC component, or just plain AC signals.
The SG560 contains a 10 bit DDS and filtering for a low noise, accurate low distortion output. The output stage utilizes the latest technology in digital modems and high power, high bandwidth DSL modems and is capable of a direct output of 2.5W! You can even generate carrier signals in the AM band for testing AM receivers and circuits.
A jumper option for zero ohm output impedance allows for true output terminal metering. But watch out, 2.5 watts is enough to damage incorrectly connected circuits.
Surface mount technology is used throughout the SG560 making it extremely reliable and accurate. Frequency is entered directly on the sealed membrane keyboard and adjusted with a precision rotary encoder with an oversized knob. Both frequency and output level are displayed on a high contrast, two-line LCD display.
The SG560 operates on 8 to 16VDC and includes a standard 110VAC power adapter. Because of the surface mount design the SG560 is only available factory wired and tested. If you are looking for a lab quality signal generator at a super price, the new generation SG560 fits the bill...and a whole lot more!
+0.1 to -1.5 dB from 3 to 5 MHz
50 ohm, 25 ohm, 0 ohm (current limited) internally selectable
Direct entry numeric keypad, incremental rotary encoder
6 non-volatile memory locations
9.625" W x 3.625" H x 5.875" D
244.4mm W x 92mm H x 149.2mm D
