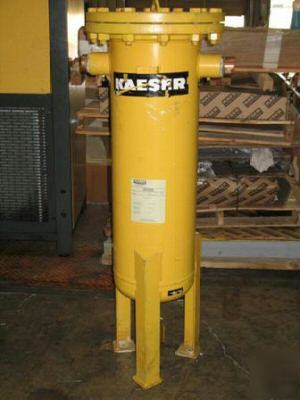

Kaeser ome 500 air compressor oil mist removal filter
Kaeser ome 500 air compressor oil mist removal filter
Kaeser Oil Mist Eliminator Protects products and processes from contaminationIncreases life of pneumatic equipmentHelps eliminate paint appearance and adhesion problemsKeeps pneumatic instrument operating Low Operating Cost
Low pressure drop: 0.5 to 1 psig
Long Cartridge life: 8 to 15 years with a large in-dept bed, element life is much longer than conventional oil removal filters
Captures and retains large slugs of oil and water if present, thus protecting downstream equipment from contamination caused by oil and water slugging
Removes Submicronic Particles for Ultra Clean Air
In a typical 100 psig air system, 72% by weight of the oil aerosols present are less then 5 microns in size. 50% are below 1 micron in size. Droplets of this size pass through a mechanical separator. Air line filters (e.g. a 5 micron particulate filter) cannot trap the bulk of the aerosols. Kaeser coalescent type Oil Mist Eliminators have been specifically designed to remove these oil aerosols down to 0.5 ppm w/w.
Advanced Filter Bed Technology
Compressed air is directed through a loosely packed bed of highly engineered, water resistant glass fibers. Water droplets and oil aerosols entrained in the air stream are captured by fibers through the mechanisms of direct interception, inertial impaction, and interception resulting from Bownian motion. The captured particles move along the fibers and coalesce into large droplets that gravitate to the bottom of the cartridge. Here they fall into an oversized quiet zone in the bottom of the housing and are discharged from the system by automatic drain trap (optional).
Model OME 500 Flow 500 cfm @ 100 psig Max Working Pressure 200 psig Max Operating Temperature 150 degrees 61 ¼†Long x 20 3/8 Wide Conections 2 ½†inch NPTF 385 lb SN HI570222001001-2K Price $2494.05
For all your compressed air needs
Sales will be added where applicable.
