#9685 - 110 ton danly obi press
#9685 - 110 ton danly obi press

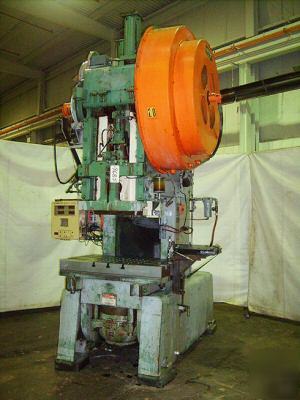

110 TON DANLY SINGLE BACK GEARED VARIABLE SPEED OBI PRESS
Capacity above bottom of stroke 110 Ton 1/4" Up
Crankshaft diameter at main bearings 5-1/2"
Crankshaft diameter at crankpin 7-3/4"
Crankshaft extension diameter x length 5-1/4" x 8"
Slide area R-L x F-B 16-1/2" x 18"
Recess for punch stem - Diameter x depth 3"x 3"
Slide knockout - Type - Stroke - Direction CAM
Bed Opening R-L x F-B 21" x 15"
Diameter of intersecting circle 20-1/2"
Shut height, Bed to slide, stroke down, adj.up 18-1/2"
Die height, bolster to slide, stroke down, adj.up 14-1/2"
Bolster plate dimensions 4" x 42" x 27"
Floor to top of bed - Press upright 36"
Inclination angles (degrees) 0 - 25 deg.
Danly Model 81 die cushion, 18" diameter, 3" stroke, 12.7 ton
Temporary Email: f_giles@dontscrapit.com (Francine Giles)
