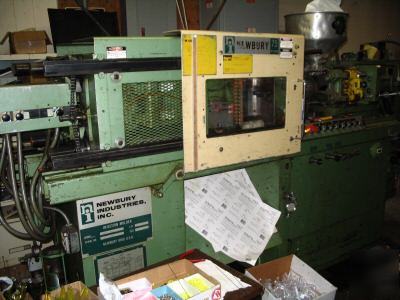

New 75 ton bury injection molding machine
New 75 ton bury injection molding machine

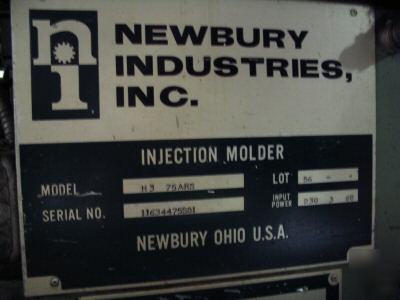

Model: H3 75 ARS, serial # 11634475S81

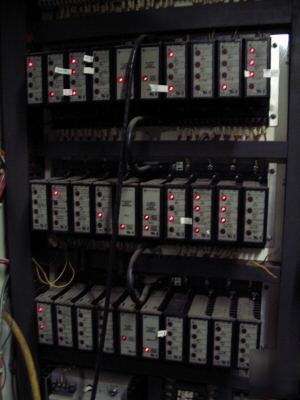

This toggle machine is driven by a Texas Instruments Solid State Programmable Controller and features Two Stage Injection, Sprue Break, Core Pull, Multiple Knock Out, and Decompress.
Shot Size: est. at 3 oz. (to be confirmed)
Dist. between tie bars: 12-1/4" X 12-1/4"
Platen size: 18" wide by 20" high

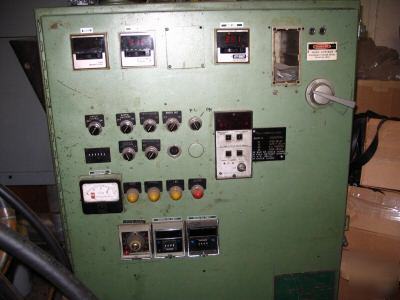

Temp. Controllers: 3 zones, all are Barber Colman 580
Voltages: Heaters are 230 VAC, 21 Amp, 3 phase, Motor is 230 VAC, 28 Amps, 3 Phase, and Control circuit is 115 VAC, 4 Amp.
Footprint / Dimensions: Machine is 3' wide by 12' long by 64" high, the control cabinet is 40" X 20" X 60" high
Questions - Bob @ (***)-655-9171 weekdays EDT (after July
Temporary Email: mkelly@dontscrapit.com (Mandy Kelly)
