Sheet metal bend deduction and allowance calculator
Sheet metal bend deduction and allowance calculator
This is not just a bending chart. BendCalc gives you the flexibility to calculate depending on the data you have. If you don't know the K-Factor, BendCalc will calculate one taking into account material type and tool radius. When air-bending, V-Width selection affects final radius which means it also affects bend deduction. Find out what that radius will be and what the deduction is. BendCalc also warns you if you choose a V-Width out of range for your thickness. Easily calculate the K-Factor to be used in 3D design software (SolidWorks, SolidEdge, Pro-E, etc.). Reverse engineer the K-Factor from your own validated data. If a sheetmetal part is to be formed on a brake ( Amada, Trumpf, Finn-Power, All Steel, Diacro, Cincinnati, LVD or any other brake ), you will find this calculator useful. Works in Inch system and in Metric system.
This is an indispensable calculator for students, press brake operators, programmers, designers, engineers, and anyone interested in unfolding parts to the correct layout size.
Calculator 1: Calculates Bend Deduction and Bend Allowance given the bend angle, material thickness, radius and K-Factor.

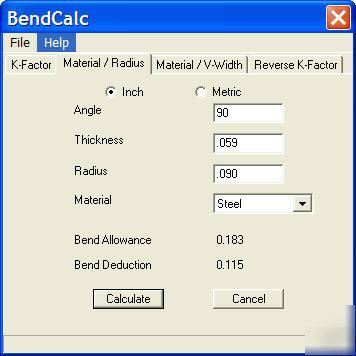

Calculator 2: Calculates Bend Deduction and Bend Allowance given the bend angle, material thickness, tool radius, and material type.

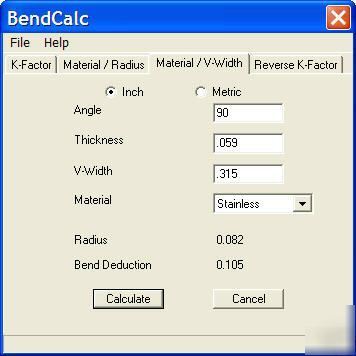

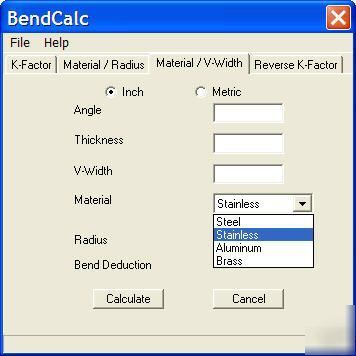

Calculator 3: Calculates Bend Deduction and inner radius, given the bend angle, material thickness, material type and V-Width.
Calculator 4: Calculates the K-Factor given the bend angle, material thickness, radius and bend deduction.
Help File: Explains all functions in detail and covers different methods of calculating unfold size.
BendCalc is not a spreadsheet file. No need to have Excel. BendCalc is standalone software, compatible with Windows 95/98/2000/XP
"Very satisfied, thanks." -streetvideos
"Excellent,A++++++++++++++++++++++" -haspkey
"CncSoft gave me prompt service and emailed me the software in 2 hours. Great" -bobbystucker
"Good utility software. Reasonably accurate to my empirically developed values." -tpproducts
"Exceptionally quick delivery" -goldenchoppers
"nice item...works great....AAA+..thanks" -chibo69
"good! Thanks! Fast seller!" -tsaienzo
"Received item as described. Thank you." -boatkrazy
"A++++++++++++++++++++" -wolfepack1955
"Awesome! Immediate response! A++++++++++ Thanks!" -biodomage
"Exactly as described AAAAA++++++++" -bsgmachine
"Good Product. A++++++" -igorbh
"Goods as described and delivered promptly" -jr2766
"Great applet, excellent vendor, thanks!" -the9thcat
