Sheldon union #2-wsf-50N horiz/vert milling machine,'70
Sheldon union #2-wsf-50N horiz/vert milling machine,'70

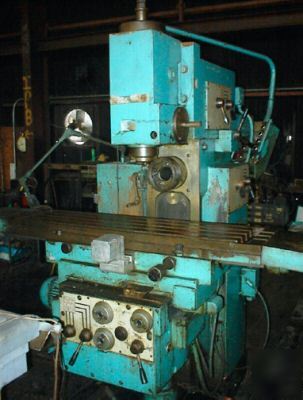

SHELDON UNION #2-WSF-50N Combination Horiz/Vert Milling Machine, new 1970
Table Work Surface: 49" x 14",
Longitudinal Travel: Automatic - 35-1/2" Manual 36-1/4",
Traverse Travel: Automatic - 13-3/4" Manual 14-1/2",
Vertical Travel: Automatic - 17-3/4" Manual 17-3/4",
Distance Spindle to Table: 1-3/4" - 15-7/8",
Distance Spindle to Column Face: 7-7/8" - 23",
Vertical Spindle Adjustment: 3",
Spindle Speeds (18) Vert. & Horiz.: 28 - 1400 rpm,
Vertical Spindle Swivel: 45 degs either side,
Table Feeds, Longit. and Transverse: 5/16 - 25 ipm, 1/8" - 8-1/4"
Feed Motor: 3 HP 3/220-440/60,
Horizontal Spindle Motor: 10 HP,
Temporary Email: l-prince@dontscrapit.com (Luis Prince)
