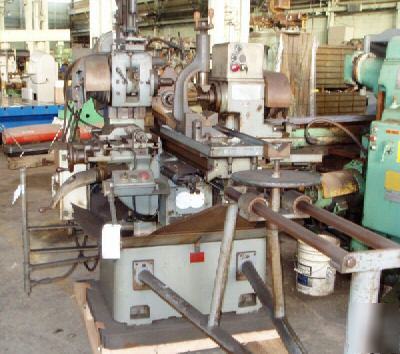

#TM NICHOLS "TWINMILL" DUPLEX PRODUCTION MILL
New 1961, Serial No TM-362, Model TM,
Rise & Fall Spindle Head Feed On LH Head
Automatic Pneumatic Traverse Feed of the Table
(2) 2 HP Individually Motorized Spindles
Gardner Denver Tru-Thread Tapper Attachment
Table Dimensions (Overall) W x L........ 10" x 36"
Table Working Surface, W x L............ 10" x 36"
Table Longitudinal Travel (X-Axis)...... 32.5"
Spindle-Center to Table-Top, Minimum.... 3.5"
Spindle-Center to Table-Top, Maximum.... 11.25"
Spindle-Nose Seperation, Minimum........ 4"
Spindle-Nose Seperation, Maximum........ 16"
Spindle Hole Diameter................... 1"
Spindle Taper........................... #40 NSTD
(15) Spindle Speeds, Range.............. 84 to 2096 RPM
Longitudinal Table Feeds, Range......... 0 to 50 IPM
Power Rapid Table Traverse.............. 300 IPM
Air Pressure Required................... 75 to 120 PSI
(2)Spindle Motors, Horsepower........... 2 HP (Each)
Overall Dimensions, W x D............... 5'4" x 5'5"
Overall Height.......................... 5'3"
Weight, Approximately................... 1900 LBS
PRICE: F.O.B. OUR WAREHOUSE............ $3,450.00
Note: RUNNING 220 VOLTS, EVERYTHING WORKS.
