13 southco pawl cam action latches
13 southco pawl cam action latches

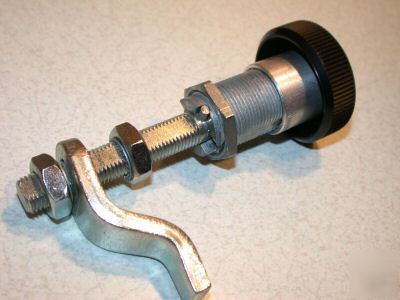

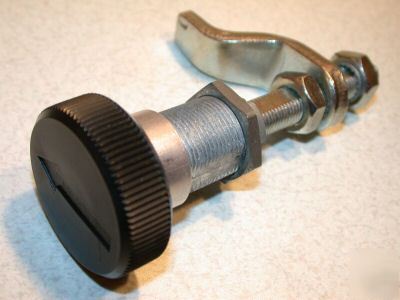

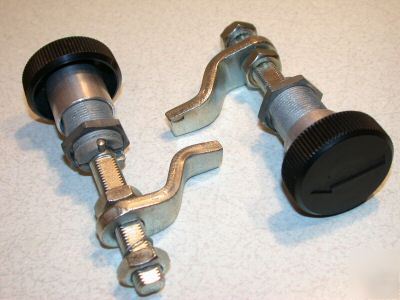

13 SOUTHCO PAWL CAM ACTION LATCHES
Choosing this simple knob actuator design for the outside of your enclosure provides lots of performance enhancements beneath its adjustable knob height, wide-ranging grip adjustment, and positive click stops to indicate full engagement. Same model can be used for right-hand or left-hand operation.
Height of knob (from outside surface of panel) is adjustable within 3/4" (.750") by adjusting ferrule on threaded sleeve before installing latch.
Detents in full open and closed positions
Turn clockwise or counter-clockwise to operate
Easy to install in single hole
Height of knob above panel is adjustable
Pawl length - 1.9" from center of shaft to end of pawl
SHAFT: Low carbon steel, zinc plate, chromate plus sealer.
PAWL: 1010 Steel, zinc plate, chromate plus sealer.
FERRULE: 6061 Aluminum, natural.
SLEEVE: Die-cast zinc with chemical protective film.
http:// /resources/documents/69.en.pdf
I will fully guarantee these new latches.
