Amprobe acd-16 trms pro 1000A data-logging multimeter
Amprobe acd-16 trms pro 1000A data-logging multimeter

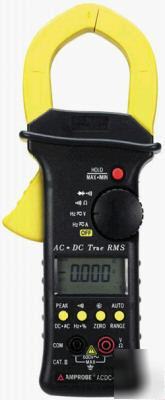

Amprobe ACDC-3000 Digital AC/DC Clamp-on Multimeter
* Dynamic Recording of Max, Min and Average readings
* In-rush Peak Current capture (1mS response)
* Dual Display of Amp & Freq., Amps & Duty Cycle, Voltage & Freq., Voltage & Duty Cycle
* 43 Segment, High speed, Analog Bar Graph
Designed to meet UL, ULc, CE, TUV, & IEC 1010
0-3.999, 39.99, 399.9, 750V ±(1.5% Rdg + 5 LSD) @ 40-400Hz**
0-3.999, 39.99, 399.9, 1000V ±(0.5% Rdg + 3 LSD) @0-399.9VDC**
0-39.99, 400.0, 1000A ±(1% Rdg + 2 LSD) ±(1% Rdg + 2 LSD)
0-3.999, 39.99, 399.9, 750V ±(2.5% Rdg + 9 LSD) @ 40-400Hz**
0-39.99, 400.0, 1000A ±(3.5% Rdg + 9 LSD) @ 40-65Hz, 40-400V**
0-399.9Ω, 3999Ω, 4.00-39.99KΩ, 40.0-399.9KΩ, 0.400-3.999MΩ, 39.99MΩ
±(1% Rdg + 3 LSD) @ 400Ω - 4MΩ**
10.00-199.99Hz, 1999Hz, 2.00-19.99kHz, 199.9kHz ±(0.2% Rdg + 4 LSD)
0.0-99.9% ±(0.3% per kHz + 0.3%)
<10.0Ω built-in buzzer sounds when reading is below 100mV
1.65mA / <3.3V ±(1% Rdg + 2 LSD)
